Texas Instruments provides a recommended PCB layout in the LM5032MTC evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management. Following this layout can help minimize noise, reduce electromagnetic interference (EMI), and improve overall performance.
The input capacitor selection depends on the input voltage, output voltage, and desired ripple current. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10uF and a voltage rating of 1.5 to 2 times the input voltage. Additionally, consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) to ensure it can handle the ripple current and switching frequency.
The maximum ambient temperature for the LM5032MTC is 85°C. As the ambient temperature increases, the device's performance may degrade, including reduced output voltage accuracy, increased output voltage ripple, and decreased efficiency. It's essential to ensure proper thermal management, such as providing adequate airflow or using a heat sink, to maintain the device's performance within the specified temperature range.
Yes, the LM5032MTC is suitable for high-reliability and automotive applications. It meets the requirements of the AEC-Q100 standard for automotive-grade devices and is designed to operate in harsh environments. However, it's essential to follow proper design and manufacturing guidelines to ensure the device meets the specific requirements of the application.
To troubleshoot issues with the LM5032MTC, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component placement to ensure they meet the recommended guidelines. Use an oscilloscope to measure the output voltage ripple and switching frequency. If the issue persists, consult the datasheet and application notes for guidance, or contact Texas Instruments' technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5032MTC Overview

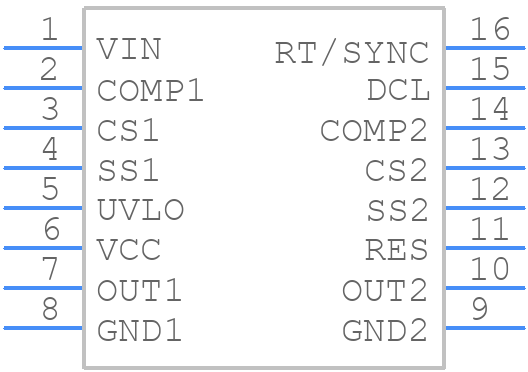

Use the download button to access the LM5032MTC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM503,
or try a keyword search, such as Switching Regulator or Controllers
