LM5034MTC/NOPB - Texas Instruments

Description: High Voltage Dual Interleaved Current Mode Controller with Active Clamp

Download LM5034MTC/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

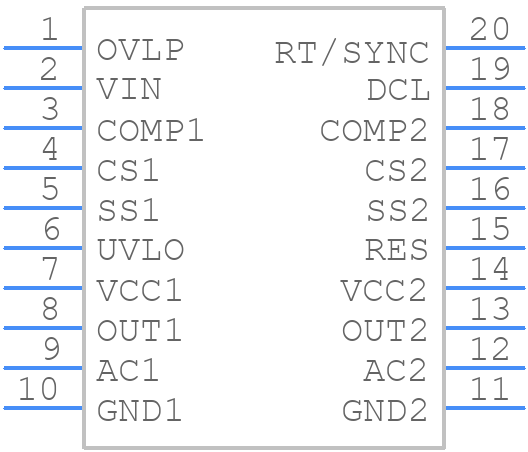

LM5034MTC/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM5034MTC/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW
click to zoom
3D Models
LM5034MTC/NOPB - Texas Instruments - 3D model - Small Outline Packages - PW
click to zoom

LM5034MTC/NOPB Details

  • Manufacturer Part Number:

    LM5034MTC/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    13 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    7 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    2000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LM5034MTC/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM5034MTC/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the output voltage traces away from the input voltage traces.
  • The choice of input and output capacitors for the LM5034MTC/NOPB depends on the specific application requirements. In general, it's recommended to use low-ESR capacitors with a capacitance value of at least 10uF for the input capacitor and 22uF for the output capacitor. The capacitor voltage rating should be at least 1.5 times the maximum input voltage.
  • The LM5034MTC/NOPB has an operating ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to derate the device's performance at high temperatures and to ensure good thermal management in the system design.
  • Proper thermal management for the LM5034MTC/NOPB involves ensuring good airflow around the device, using a heat sink if necessary, and keeping the device away from other heat sources. The device's thermal pad should be soldered to a solid ground plane or a thermal pad on the PCB to ensure good heat dissipation.
  • The recommended input voltage range for the LM5034MTC/NOPB is 2.7V to 5.5V. Operating the device outside of this range may affect its performance and reliability.
