Part Image

LM5035BMH/NOPB - Texas Instruments

Description: LM5035B PWM Controller with Integrated Half-Bridge and SyncFET Drivers

Download LM5035BMH/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

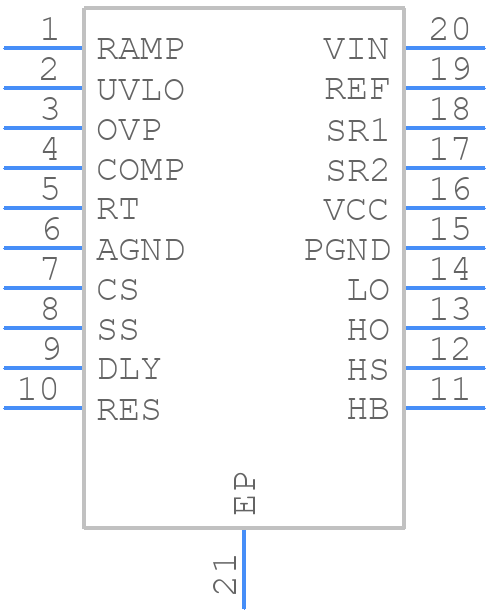

LM5035BMH/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM5035BMH/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0020A_1
click to zoom
3D Models
LM5035BMH/NOPB - Texas Instruments - 3D model - Small Outline Packages - PWP0020A_1
click to zoom

LM5035BMH/NOPB Details

  • Manufacturer Part Number:

    LM5035BMH/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    SEATED HGT-NOM

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    13 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    2000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LM5035BMH/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output traces short and away from each other, using a solid ground plane, and minimizing vias and thermal reliefs.
  • The LM5035BMH/NOPB has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Also, follow the recommended operating temperature range and power dissipation guidelines.
  • The absolute maximum input voltage rating for the LM5035BMH/NOPB is 42V, but the recommended operating input voltage range is 12V to 38V. Exceeding the maximum input voltage can damage the device.
  • Yes, the LM5035BMH/NOPB is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade and is also suitable for industrial and medical applications that require high reliability.
  • Start by checking the PCB layout and ensuring that it follows the recommended layout guidelines. Verify that the input and output capacitors are properly selected and placed. Check for any signs of overheating or thermal issues. Use an oscilloscope to monitor the input and output waveforms and look for any signs of oscillation or instability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM5035BMH/NOPB Overview

Use the download button to access the LM5035BMH/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM503, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
