Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output traces short and away from each other, using a solid ground plane, and minimizing vias and thermal reliefs.
The LM5035BSQX/NOPB has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Also, follow the recommended operating temperature range and power dissipation guidelines.
A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be placed as close as possible to the VIN pin and have a voltage rating that exceeds the maximum input voltage.
Start by verifying the PCB layout and component values against the recommended design. Check for proper input and output filtering, and ensure that the input voltage is within the recommended range. Use an oscilloscope to measure the output voltage and current, and look for signs of oscillation or instability. Consult the datasheet and application notes for troubleshooting guides and FAQs.
The LM5035BSQX/NOPB is a commercial-grade device, but it can be used in high-reliability or automotive applications with proper design and testing. Ensure that the device is operated within its recommended specifications, and follow the recommended design and layout guidelines. Additionally, consult with Texas Instruments' application engineers and review the device's reliability and quality data.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5035BSQX/NOPB Overview

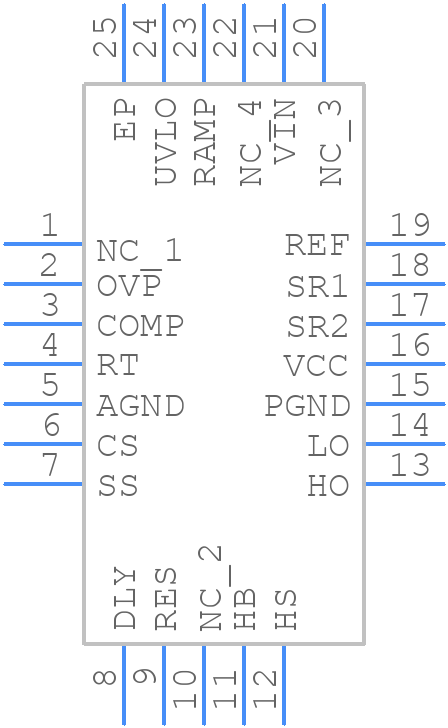

Use the download button to access the LM5035BSQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM503,
or try a keyword search, such as Switching Regulator or Controllers
