- Part Number LM5036RJBT
- Manufacturer Texas Instruments
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - LM5036RJBT-1
- Released Date Apr 7, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM5036RJBT Details
-
Manufacturer Part Number:
LM5036RJBT
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Additional Feature:
ALSO OPERATES IN CURRRNTMODE
-
Analog IC - Other Type:
SWITCHING CONTROLLER
LM5036RJBT Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the LM5036RJBT evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management. Following this layout can help minimize noise, reduce electromagnetic interference (EMI), and improve overall performance.
-
The input capacitors should be selected based on the input voltage range, ripple current, and ESR (Equivalent Series Resistance) requirements. A minimum of 10uF capacitance is recommended, with a voltage rating of at least 1.5 times the maximum input voltage. X5R or X7R ceramic capacitors are suitable options. Refer to the datasheet for more information on input capacitor selection.
-
The LM5036RJBT is rated for operation from -40°C to 125°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
-
Yes, the LM5036RJBT is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices and is suitable for use in harsh environments. However, it's essential to follow proper design and manufacturing guidelines to ensure the device meets the required reliability and quality standards.
-
Texas Instruments provides a troubleshooting guide for the LM5036RJBT in the datasheet and application notes. Common issues can often be resolved by checking the input voltage, output load, and PCB layout. Additionally, using the device's built-in protection features, such as overcurrent protection and thermal shutdown, can help prevent damage and ensure reliable operation.
Trust Checks
Expert Contribution
System Verified
Community Approved
LM5036RJBT Overview

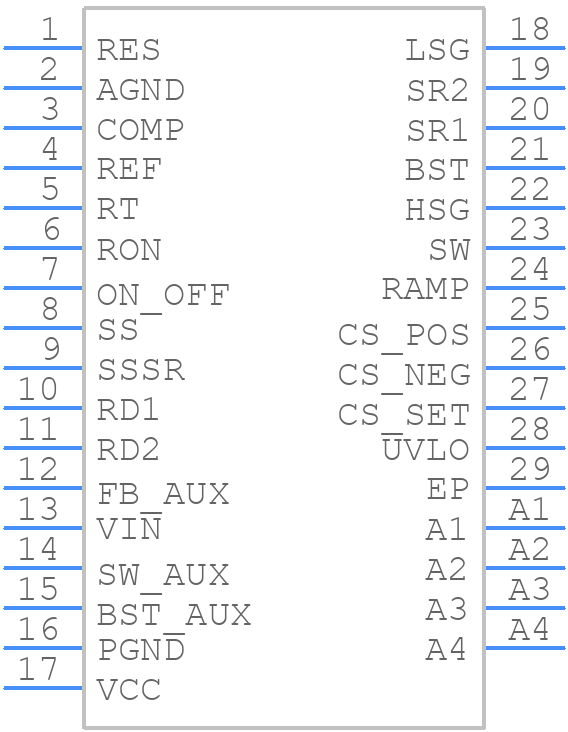

Use the download button to access the LM5036RJBT schematic symbol, PCB footprint, and 3D model.
