Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output traces short and away from each other, using a solid ground plane, and minimizing vias and thermal reliefs.
To ensure stability, follow the recommended component values and PCB layout, and make sure the input and output capacitors are properly selected and placed. Additionally, ensure that the feedback network is properly designed and the loop gain is sufficient. Texas Instruments also provides a stability analysis tool to help with this process.
The maximum ambient temperature range for the LM5037MTX/NOPB is -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate within a narrower range if possible.
Yes, the LM5037MTX/NOPB is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is manufactured using a high-reliability process. However, it's recommended to consult with Texas Instruments and perform additional testing and validation to ensure the device meets the specific requirements of the application.
To troubleshoot issues with the LM5037MTX/NOPB, start by checking the input and output voltages, current, and temperature. Verify that the component values and PCB layout match the recommended design. Use oscilloscopes and thermal imaging cameras to identify any anomalies. Consult the datasheet and application notes for troubleshooting guides and contact Texas Instruments support if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5037MTX/NOPB Overview

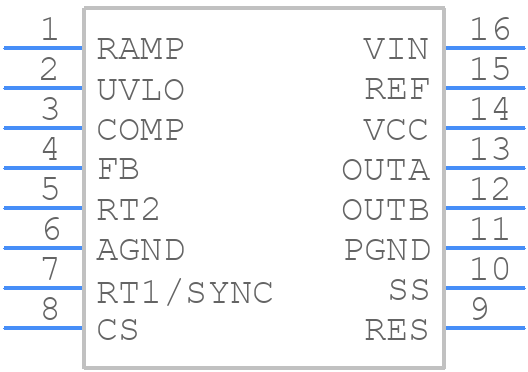

Use the download button to access the LM5037MTX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM503,
or try a keyword search, such as Switching Regulator or Controllers
