A good PCB layout for the LM5041MTC/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the high-current paths away from sensitive analog circuits.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input voltage with a capacitor and to use a snubber circuit if the output is inductive.
The LM5041MTC/NOPB is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 100°C for optimal performance.
Yes, the LM5041MTC/NOPB is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is manufactured using a qualified process. However, it's recommended to consult with Texas Instruments' application engineers to ensure the device meets the specific requirements of your application.
To troubleshoot issues with the LM5041MTC/NOPB, start by checking the input and output voltages, as well as the current drawn from the input. Verify that the device is properly configured and that the component values are correct. Use an oscilloscope to check for oscillations or other anomalies. If the issue persists, consult the datasheet and application notes, or contact Texas Instruments' technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5041MTC/NOPB Overview

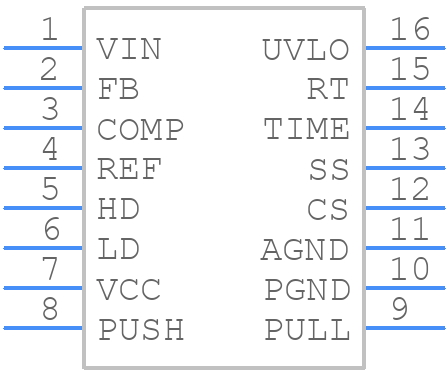

Use the download button to access the LM5041MTC/NOPB schematic symbol, PCB footprint, and 3D model.
