Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and EMI.
The selection of input and output capacitors depends on the specific application and operating conditions. In general, low-ESR capacitors with high ripple current ratings are recommended. The datasheet provides some guidance on capacitor selection, but it's also recommended to consult with capacitor manufacturers and perform simulations to ensure optimal performance.
The LM5070 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and cooling conditions. It's recommended to consult with Texas Instruments or a thermal expert to determine the maximum ambient temperature range for a specific design.
Proper thermal management is critical for the LM5070. This can be achieved through the use of heat sinks, thermal interfaces, and airflow. The datasheet provides some guidance on thermal management, but it's also recommended to consult with thermal experts and perform thermal simulations to ensure optimal performance.
The recommended input voltage range for the LM5070 is 7V to 14V, but the device can operate from 6V to 15V. However, operating the device outside of the recommended range may affect its performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5070MTCX-80/NOPB Overview

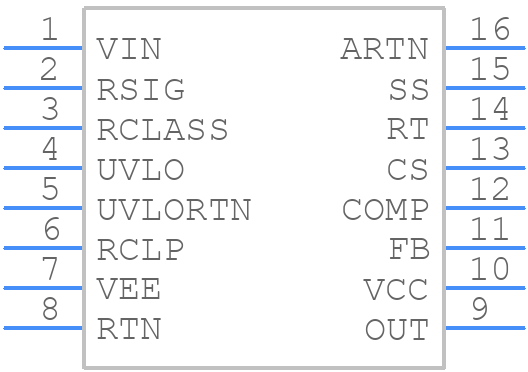

Use the download button to access the LM5070MTCX-80/NOPB schematic symbol, PCB footprint, and 3D model.
