Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the input and output traces short and away from each other, using a solid ground plane, and minimizing vias and thermal reliefs.
To ensure stability, follow the datasheet's guidelines for component selection, such as choosing the correct output capacitor and resistor values. Additionally, make sure to decouple the input and output pins properly, and consider adding a small capacitor (e.g., 10nF) between the VIN and GND pins to improve stability.
The LM5070SD-50/NOPB has an operating junction temperature range of -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and thermal design. As a general rule, the ambient temperature should be kept below 85°C to ensure reliable operation.
Yes, the LM5070SD-50/NOPB is qualified for automotive and high-reliability applications, but it's essential to follow Texas Instruments' guidelines for reliability and qualification, including using the correct package and grade (e.g., Q100 or V62/046) and ensuring the device is operated within its specified ratings.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current draw. Check for proper component selection, PCB layout, and thermal design. Use an oscilloscope to monitor the output voltage and current, and consider using a thermal camera to identify hotspots. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5070SD-50/NOPB Overview

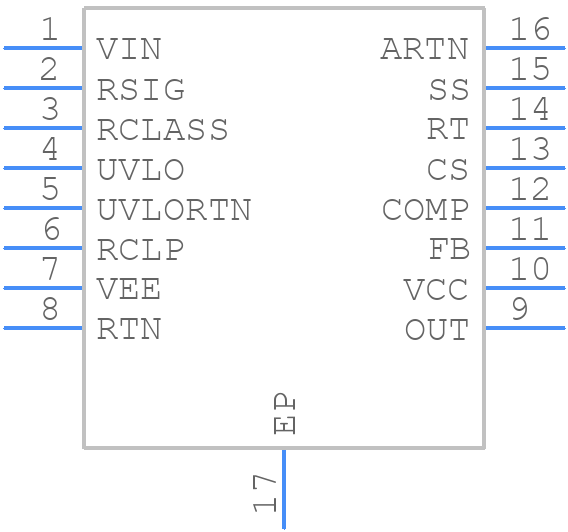

Use the download button to access the LM5070SD-50/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM507,
or try a keyword search, such as Switching Regulator or Controllers
