A good PCB layout for the LM5088MHX-2/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be operated within its recommended operating conditions.
The maximum ambient temperature range for the LM5088MHX-2/NOPB is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
Yes, the LM5088MHX-2/NOPB is suitable for high-reliability applications. It is built with high-reliability materials and has undergone rigorous testing to ensure its performance and reliability. However, it is essential to follow proper design and manufacturing practices to ensure the device's reliability.
To troubleshoot issues with the LM5088MHX-2/NOPB, start by checking the input and output voltages, and ensuring that the device is operated within its recommended operating conditions. Check for any signs of overheating, and verify that the PCB layout and component selection meet the recommended guidelines.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5088MHX-2/NOPB Overview

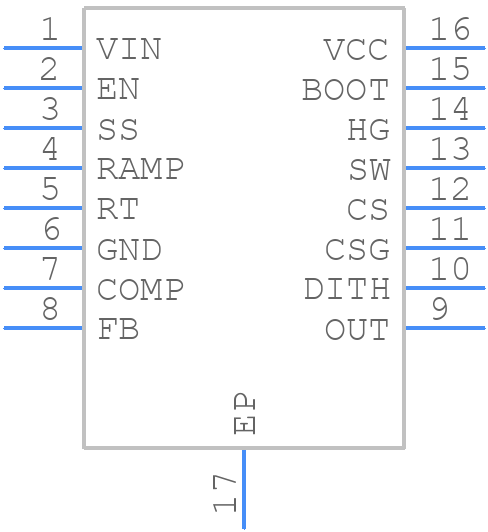

Use the download button to access the LM5088MHX-2/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM508,
or try a keyword search, such as Switching Regulator or Controllers
