Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the input and output pins to the ground plane.
To ensure stability, follow the recommended component values and PCB layout, and make sure the input and output capacitors are properly selected. Additionally, ensure that the device is operated within its recommended operating conditions, and that the input voltage is within the specified range.
The maximum ambient temperature range for the LM5102SDX/NOPB is -40°C to 125°C, but the device can operate up to 150°C with derating. It's essential to ensure the device is operated within its recommended operating conditions to ensure reliability and performance.
Yes, the LM5102SDX/NOPB is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard, and Texas Instruments provides a PPAP (Production Part Approval Process) document to support automotive applications.
To troubleshoot issues, start by verifying the input voltage, output load, and PCB layout. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5102SDX/NOPB Overview

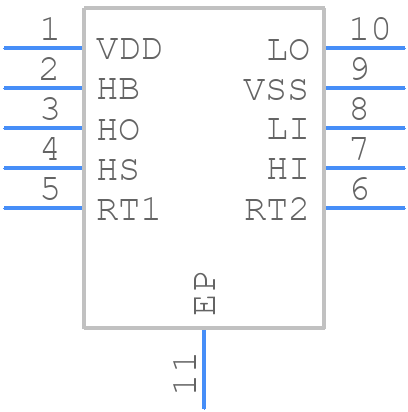

Use the download button to access the LM5102SDX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM510,
or try a keyword search, such as MOSFET Drivers
