LM5104SDX/NOPB - Texas Instruments

Description: Driver 1.8A 2-OUT Hi/Lo Side Full Brdg/Half Brdg Inv/Non-Inv 10-Pin WSON EP T/R

Download LM5104SDX/NOPB Model
Schematic

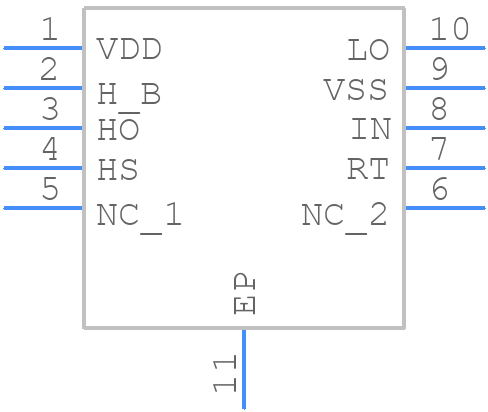

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LM5104SDX/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DPR0010A
click to zoom
3D Models
LM5104SDX/NOPB - Texas Instruments  - 3D model - Small Outline No-lead - DPR0010A
click to zoom

LM5104SDX/NOPB Details

  • Manufacturer Part Number:

    LM5104SDX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Built-in Protections:

    UNDER VOLTAGE

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Current-Max:

    1.8 A

  • Output Peak Current Limit-Nom:

    1.8 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.16,32

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    14 V

  • Supply Voltage-Min:

    9 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    114 V

  • Supply Voltage1-Min:

    7 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.056 µs

  • Turn-on Time:

    0.056 µs

  • Width:

    4 mm

LM5104SDX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the input and output capacitors to the ground plane.
  • To ensure stability, follow the recommended component values and PCB layout, and make sure the input and output capacitors are properly selected and placed. Additionally, ensure that the feedback resistors are properly sized and that the loop gain is sufficient. If oscillations occur, try adding a small capacitor (e.g., 10nF) in parallel with the feedback resistors to improve stability.
  • The maximum input voltage of the LM5104SDX/NOPB is 42V, but it's recommended to operate the device within the specified input voltage range (up to 36V) to ensure reliable operation and to prevent damage to the device.
  • The LM5104SDX/NOPB is rated for operation up to 125°C, but it's recommended to derate the device's performance and ensure proper thermal management to prevent overheating. Additionally, consider using a heat sink or thermal interface material to improve heat dissipation.
  • To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component values to ensure they match the recommended design. Use an oscilloscope to measure the output voltage and current, and look for signs of oscillation or instability. If issues persist, consult the datasheet and application notes, or contact Texas Instruments support for further assistance.
