LM5105SDX - Texas Instruments

Description: Gate Drivers 100V Half Bridge Gate Driver with Programmable Dead-Time 10-WSON -40 to 125

Download LM5105SDX Model

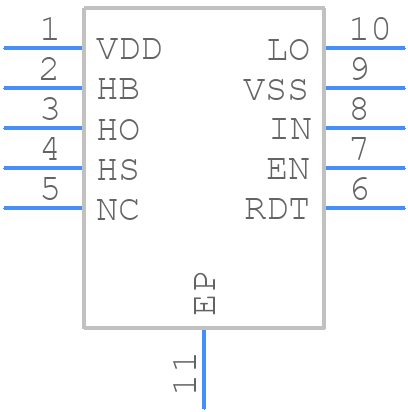

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LM5105SDX - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DPR0010A
click to zoom
3D Models
LM5105SDX - Texas Instruments  - 3D model - Small Outline No-lead - DPR0010A
click to zoom

LM5105SDX Details

  • Manufacturer Part Number:

    LM5105SDX

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SON

  • Package Description:

    4 X 4 MM, LLP-10

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-XDSO-N10

  • JESD-609 Code:

    e0

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    1.8 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.16,32

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    14 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    114 V

  • Supply Voltage1-Min:

    7 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.056 µs

  • Turn-on Time:

    0.705 µs

  • Width:

    4 mm

LM5105SDX Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the LM5105SDX evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. Additionally, consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) to ensure it can handle the high-frequency switching of the LM5105SDX.
  • The LM5105SDX has a maximum ambient temperature rating of 85°C, but it can be derated to 70°C for high-reliability applications. It's essential to consider the thermal management of the device, including heat sinking and airflow, to ensure reliable operation within the specified temperature range.
  • While the LM5105SDX is rated for up to 42V input, it's not recommended to use it in applications above 42V without proper external protection and voltage clamping. Exceeding the maximum input voltage can damage the device. Consult with Texas Instruments or a qualified engineer to design a custom solution for high-voltage applications.
  • To troubleshoot the LM5105SDX, start by verifying the input voltage, current, and frequency. Check the output voltage, current, and ripple. Use an oscilloscope to monitor the switching node and output voltage. Consult the datasheet and application notes for guidance on debugging common issues, such as oscillations, overvoltage, or undervoltage conditions.
