Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the input and output capacitors to the ground plane.
To ensure stability, follow the recommended component values and PCB layout, and make sure the input and output capacitors are properly selected and placed. Additionally, ensure that the feedback resistors are properly matched and that the loop gain is sufficient. If oscillations occur, try adding a small capacitor (e.g., 10nF) in parallel with the feedback resistors.
The maximum input voltage is not explicitly stated in the datasheet, but it's generally recommended to keep the input voltage below 42V to ensure reliable operation. Exceeding this voltage may cause internal damage or affect the device's performance.
The LM5109ASDX/NOPB is rated for operation up to 125°C, but its performance may degrade at high temperatures. Ensure that the device is properly heatsinked and that the thermal design is adequate to keep the junction temperature below 125°C. Consult the datasheet for thermal design guidelines.
Start by verifying the input voltage, output load, and component values. Check for proper PCB layout, soldering, and component placement. Use an oscilloscope to monitor the output voltage and input voltage ripple. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5109ASDX/NOPB Overview

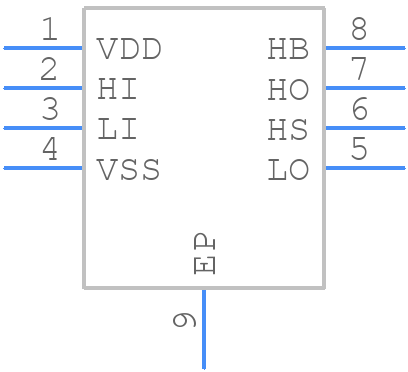

Use the download button to access the LM5109ASDX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM510,
or try a keyword search, such as MOSFET Drivers
