A good PCB layout for the LM5110-1M/NOPB involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to decouple the input and output pins with suitable capacitors, and use a low-ESR output capacitor to minimize oscillations.
The LM5110-1M/NOPB is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and thermal design. It's essential to consider the thermal characteristics of the device and the system to ensure reliable operation.
Yes, the LM5110-1M/NOPB is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive systems. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific application requirements.
To troubleshoot issues with the LM5110-1M/NOPB, start by verifying the input and output voltages, and checking for any signs of overheating or physical damage. Use an oscilloscope to inspect the output waveform and look for any signs of oscillation or noise. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5110-1M/NOPB Overview

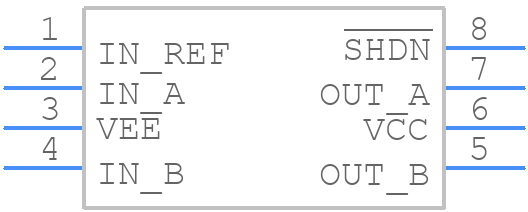

Use the download button to access the LM5110-1M/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM511,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
