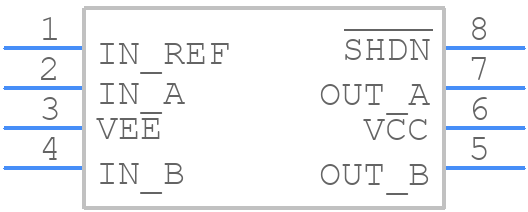

LM5110-2M - Texas Instruments

LM5110-2M Details

• Manufacturer Part Number:

  LM5110-2M

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  MS-012AA, SOIC-8

• Pin Count:

  8

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Built-in Protections:

  UNDER VOLTAGE

• Interface IC Type:

  BUFFER OR INVERTER BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e0

• Length:

  4.902 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  2

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current Flow Direction:

  SOURCE AND SINK

• Output Peak Current Limit-Nom:

  5 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  235

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.753 mm

• Supply Voltage-Max:

  14 V

• Supply Voltage-Min:

  3.5 V

• Supply Voltage-Nom:

  12 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  20

• Turn-off Time:

  0.04 µs

• Turn-on Time:

  0.04 µs

• Width:

  3.9 mm
