LM5110-2SD/NOPB - Texas Instruments

Description: Dual 5A Compound Gate Driver with Negative Output Voltage Capability

Download LM5110-2SD/NOPB Model

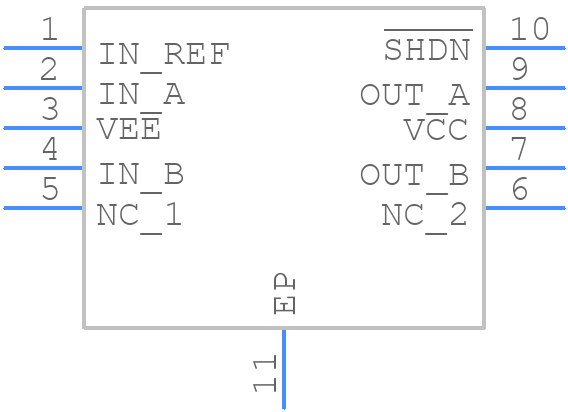

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LM5110-2SD/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DPR0010A_2021
click to zoom
3D Models
LM5110-2SD/NOPB - Texas Instruments  - 3D model - Small Outline No-lead - DPR0010A_2021
click to zoom

LM5110-2SD/NOPB Details

  • Manufacturer Part Number:

    LM5110-2SD/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Built-in Protections:

    UNDER VOLTAGE

  • High Side Driver:

    NO

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Current-Max:

    5 A

  • Output Peak Current Limit-Nom:

    5 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Max:

    14 V

  • Supply Voltage-Min:

    3.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.04 µs

  • Turn-on Time:

    0.04 µs

  • Width:

    4 mm

LM5110-2SD/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM5110-2SD involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the stability of the LM5110-2SD output voltage, it's essential to choose the correct output capacitor value and type. A minimum capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple. Additionally, the output voltage can be stabilized by adding a small ceramic capacitor (e.g., 100nF) in parallel with the output capacitor.
  • The LM5110-2SD can handle input voltages up to 42V, but it's recommended to operate the device within the specified input voltage range of 4.5V to 36V for optimal performance and reliability.
  • The LM5110-2SD is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure that the device is properly heat-sinked, and the PCB is designed to dissipate heat efficiently.
  • To troubleshoot issues with the LM5110-2SD output voltage, start by checking the input voltage, output capacitor value, and PCB layout. Verify that the input voltage is within the specified range, and the output capacitor is properly sized and connected. Use an oscilloscope to measure the output voltage ripple and noise, and check for any signs of overheating or thermal shutdown.
