A good PCB layout for the LM5110-3MX/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the input and output capacitors should be selected based on the specific application requirements, and the device should be operated within its recommended operating conditions.
The LM5110-3MX/NOPB has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking and to keep the device within its recommended operating temperature range. A thermal pad on the bottom of the package can be connected to a heat sink or a thermal plane on the PCB to improve heat dissipation.
Yes, the LM5110-3MX/NOPB is qualified for automotive and high-reliability applications. It's manufactured using a robust process, and the device is designed to meet the requirements of the AEC-Q100 standard. However, it's essential to follow the recommended operating conditions and to perform thorough testing and validation to ensure the device meets the specific application requirements.
To troubleshoot issues with the LM5110-3MX/NOPB, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component values to ensure they match the recommended values. Use an oscilloscope to measure the input and output waveforms, and check for any signs of oscillation or instability. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5110-3MX/NOPB Overview

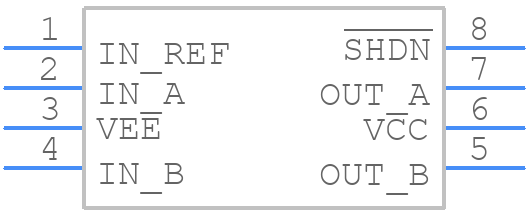

Use the download button to access the LM5110-3MX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM511,
or try a keyword search, such as MOSFET Drivers
