SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.09 mm
Supply Current-Max:
2 mA
Supply Voltage-Max:
14 V
Supply Voltage-Min:
3.5 V
Supply Voltage-Nom:
12 V
Supply Voltage1-Max:
14 V
Supply Voltage1-Min:
3.5 V
Supply Voltage1-Nom:
12 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
0.04 µs
Turn-on Time:
0.04 µs
Width:
3 mm
LM5111-4MY/NOPB Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors close to the device.
The LM5111-4MY/NOPB has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. Additionally, ensure good airflow around the device, and consider using a heat sink if the device will be operating at high temperatures or high currents.
The maximum allowed voltage on the input pins of the LM5111-4MY/NOPB is 6V, which is higher than the recommended operating voltage of 5V. However, it's still important to ensure that the input voltage does not exceed 6V to prevent damage to the device.
Yes, the LM5111-4MY/NOPB is qualified for automotive and high-reliability applications, and meets the requirements of the AEC-Q100 standard. However, it's still important to review the device's specifications and ensure they meet the specific requirements of your application.
Start by reviewing the device's datasheet and application notes, and ensure that the device is properly powered and configured. Use oscilloscopes and other diagnostic tools to measure the device's input and output signals, and check for any signs of overheating or physical damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5111-4MY/NOPB Overview

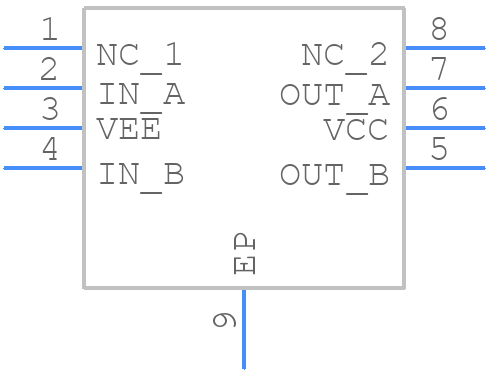

Use the download button to access the LM5111-4MY/NOPB schematic symbol, PCB footprint, and 3D model.
