LM5112MY - Texas Instruments

Description: Tiny 7A MOSFET Gate Driver

Download LM5112MY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

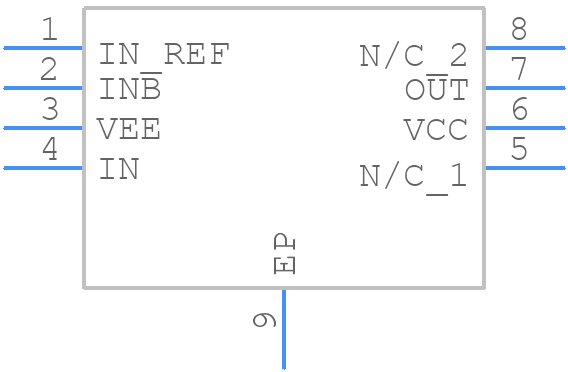

LM5112MY - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM5112MY - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008A
click to zoom
3D Models
LM5112MY - Texas Instruments - 3D model - Small Outline Packages - DGN0008A
click to zoom

LM5112MY Details

  • Manufacturer Part Number:

    LM5112MY

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • High Side Driver:

    NO

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    7 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.09 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Max:

    14 V

  • Supply Voltage-Min:

    3.5 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    14 V

  • Supply Voltage1-Min:

    3.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.04 µs

  • Turn-on Time:

    0.04 µs

  • Width:

    3 mm

LM5112MY Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the LM5112MY evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The selection of input and output capacitors depends on the specific application requirements, such as input voltage, output voltage, and output current. Texas Instruments provides guidelines for capacitor selection in the datasheet and application notes, including recommendations for capacitor type, value, and ESR.
  • The LM5112MY has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Engineers should ensure that the device is properly cooled and thermal management is implemented to prevent overheating.
  • Texas Instruments provides troubleshooting guides and application notes that cover common issues and their solutions. Engineers can also use oscilloscopes and other diagnostic tools to identify the root cause of the problem and implement corrective measures.
  • Yes, the LM5112MY is compatible with lead-free soldering processes, and Texas Instruments provides guidelines for lead-free soldering in the datasheet and application notes.
