A good PCB layout for the LM5113 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the output voltage traces away from the input voltage traces.
The choice of input and output capacitors for the LM5113 depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage are recommended. The capacitance value should be chosen based on the desired output voltage ripple and the maximum allowed ESR.
The LM5113 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's recommended to follow the thermal design guidelines in the datasheet and to ensure that the device is operated within its specified thermal limits.
To ensure stability, it's recommended to follow the layout guidelines in the datasheet, use the recommended capacitors, and ensure that the input and output voltages are within the specified ranges. Additionally, it's recommended to add a small ceramic capacitor (e.g. 10nF) between the VIN and GND pins to filter out high-frequency noise.
The maximum output current capability of the LM5113 is 3A, but this can be limited by the thermal design of the system and the maximum ambient temperature. It's recommended to follow the thermal design guidelines in the datasheet and to ensure that the device is operated within its specified thermal limits.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5113TMX/NOPB Overview

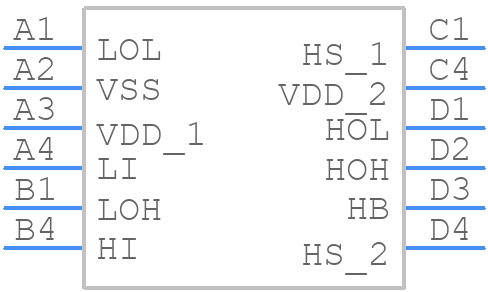

Use the download button to access the LM5113TMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM511,
or try a keyword search, such as MOSFET Drivers
