Texas Instruments provides a recommended PCB layout in the LM5115 datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, the TI website offers a PCB layout checklist and a layout guide for high-frequency switching regulators like the LM5115.
The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and output current. TI provides an inductor selection guide in the LM5115 datasheet, which includes a list of recommended inductors and their corresponding characteristics. Additionally, online inductor selection tools and simulation software can be used to aid in the selection process.
The LM5115 has a maximum ambient operating temperature of 125°C, but the device can operate at higher temperatures with derating. The datasheet provides a thermal derating curve that shows the maximum output current vs. ambient temperature. It's essential to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
Yes, the LM5115 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive-grade ICs and is manufactured using a high-reliability process. However, it's essential to review the device's qualification data and perform additional testing and validation to ensure that it meets the specific requirements of the application.
TI provides a troubleshooting guide in the LM5115 datasheet, which covers common issues and their solutions. Additionally, the TI website offers application notes and technical articles that provide guidance on troubleshooting and debugging switching regulator designs. It's also recommended to consult with TI's technical support team or a qualified engineer with experience in switching regulator design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5115AMT/NOPB Overview

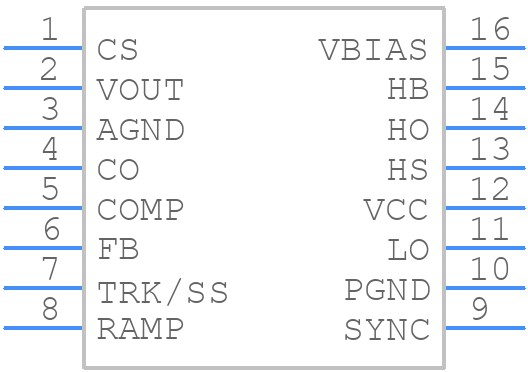

Use the download button to access the LM5115AMT/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM511,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
