LM5117PMH/NOPB - Texas Instruments

Description: Texas Instruments LM5117PMH/NOPB, DC-DC Controller, 20A, 65 V Step-Down, 530 kHz, 20-Pin, HTSSOP

Download LM5117PMH/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

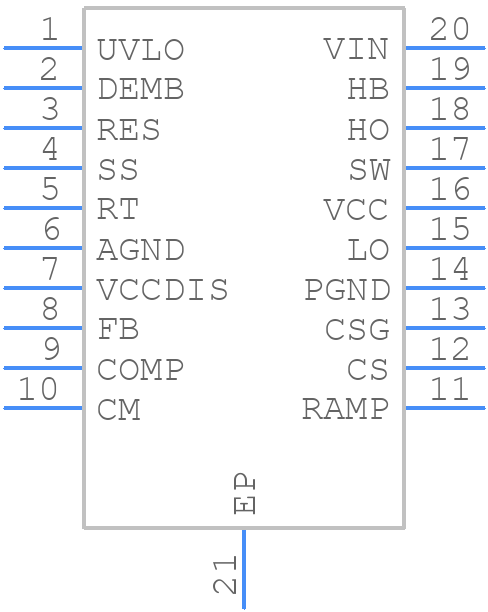

LM5117PMH/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM5117PMH/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0020A
click to zoom
3D Models
LM5117PMH/NOPB - Texas Instruments - 3D model - Small Outline Packages - PWP0020A
click to zoom

LM5117PMH/NOPB Details

  • Manufacturer Part Number:

    LM5117PMH/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    SEATED HGT-NOM, PROGRAMMABLE OUTPUT FROM 0.8V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    65 V

  • Input Voltage-Min:

    5.5 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    20 A

  • Output Voltage-Max:

    62 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    750 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LM5117PMH/NOPB Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM5117PMH/NOPB is 42V, but it's recommended to operate within the specified input voltage range of 6.5V to 36V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the input voltage should be well-regulated and free of noise.
  • The maximum output current that the LM5117PMH/NOPB can deliver is 1A, but it's recommended to operate within the specified output current range of 0.1A to 0.5A for optimal performance and reliability.
  • The LM5117PMH/NOPB has built-in overcurrent protection and thermal shutdown features. However, it's still important to follow proper design and layout guidelines to prevent overheating and overcurrent conditions. Additionally, consider adding external protection components, such as fuses or current-limiting resistors, to ensure the device's reliability.
  • The LM5117PMH/NOPB is rated for operation up to 125°C, but it's essential to follow proper thermal design and layout guidelines to ensure reliable operation in high-temperature environments. Additionally, consider derating the device's performance and output current to prevent overheating and ensure reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM5117PMH/NOPB Overview

Use the download button to access the LM5117PMH/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM511, or try a keyword search, such as Switching Regulator or Controllers
