- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LM5118MH
- Part Number LM5118MH
- Manufacturer Texas Instruments
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PWP0020A
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM5118MH Details
-
Manufacturer Part Number:
LM5118MH
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
TSSOP
-
Package Description:
TSSOP-20
-
Pin Count:
20
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Analog IC - Other Type:
SWITCHING CONTROLLER
-
Control Mode:
CURRENT-MODE
LM5118MH Frequently Asked Questions (FAQs)
-
The maximum operating temperature range for the LM5118MH is -40°C to 125°C. However, it's recommended to operate within -20°C to 85°C for optimal performance.
-
To ensure stability, make sure to follow the recommended layout and component selection guidelines in the datasheet. Additionally, use a low-ESR output capacitor and ensure the input capacitor is properly bypassed. You can also add a small resistor (e.g., 1-10 ohms) in series with the output capacitor to dampen any potential oscillations.
-
The recommended input capacitor value is 10-22uF, and it's recommended to use a low-ESR ceramic capacitor (e.g., X5R or X7R dielectric) to minimize voltage ripple and ensure stable operation.
-
Yes, the LM5118MH is designed to handle high currents up to 8A. However, make sure to follow the thermal design guidelines and ensure proper heat sinking to prevent overheating. You may also need to add additional components, such as a current sense resistor, to monitor and limit the output current.
-
The output voltage of the LM5118MH can be adjusted by using a resistive divider network between the output and the FB pin. The recommended resistors are R1 = 10kohm and R2 = 2.2kohm for a 1.8V output. You can calculate the required resistor values using the formula provided in the datasheet.
Trust Checks
System Verified
LM5118MH Overview

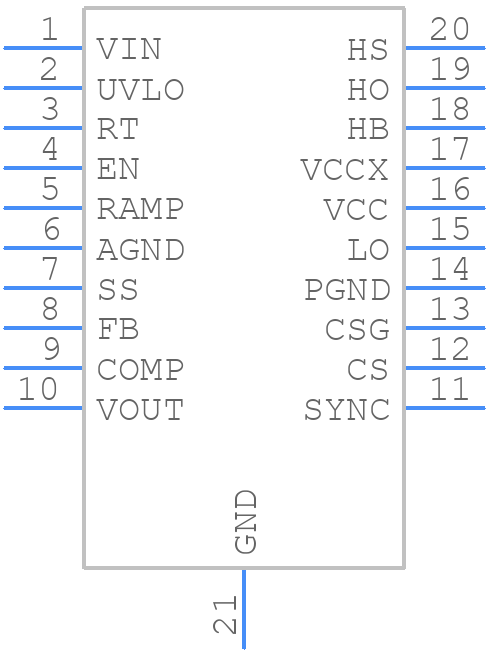

Use the download button to access the LM5118MH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM511,
or try a keyword search, such as Switching Regulator or Controllers
