Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the input and output capacitors to the ground plane.
To ensure stability, follow the recommended component values and PCB layout, and make sure the input and output capacitors are properly selected and placed. Additionally, ensure that the feedback resistors are properly sized and that the loop gain is sufficient. If oscillations occur, try adding a small capacitor (e.g., 10nF) in parallel with the feedback resistors to improve stability.
The maximum input voltage of the LM5119QPSQX/NOPB is 42V, but it's recommended to operate the device within the specified input voltage range (12V to 38V) for optimal performance and reliability.
The LM5119QPSQX/NOPB is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as the temperature increases to ensure reliable operation. Consult the datasheet for specific derating guidelines.
To troubleshoot issues, start by verifying the input voltage, output voltage, and output current. Check the PCB layout and component values to ensure they match the recommended design. Use an oscilloscope to measure the output voltage and current waveforms, and check for signs of oscillation or instability. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5119QPSQX/NOPB Overview

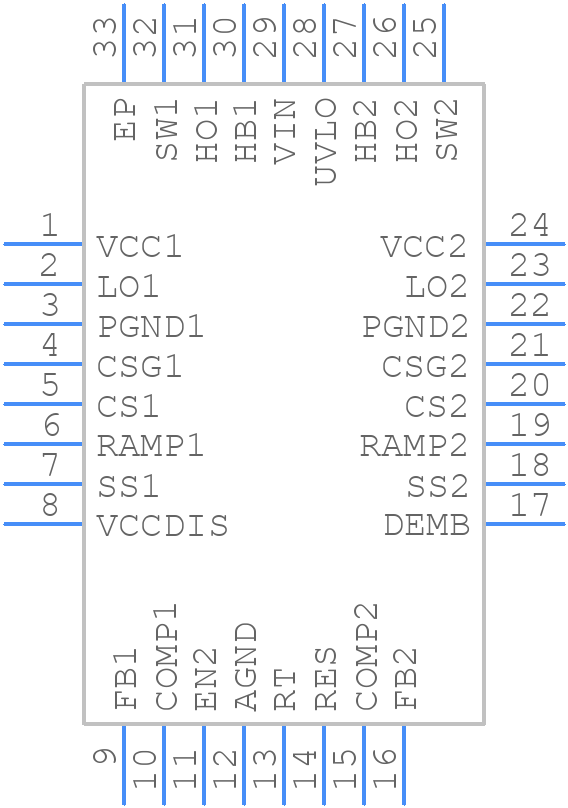

Use the download button to access the LM5119QPSQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM511,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
