SEATED HGT-NOM, AVAILABLE OUTPUT VOLTAGE IS UP TO 100V
Analog IC - Other Type:
SWITCHING CONTROLLER
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
65 V
Input Voltage-Min:
3 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PDSO-G20
JESD-609 Code:
e3
Length:
6.5 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
20
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
20 A
Output Voltage-Max:
100 V
Output Voltage-Min:
3 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Equivalence Code:
TSSOP20,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Switcher Configuration:
BUCK-BOOST
Switching Frequency-Max:
1000 kHz
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
LM5122QMH/NOPB Frequently Asked Questions (FAQs)
A good PCB layout for the LM5122QMH/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output with ceramic capacitors.
The LM5122QMH/NOPB has an operating ambient temperature range of -40°C to 125°C. However, the device can be operated at a higher temperature range with derating.
Yes, the LM5122QMH/NOPB is a high-reliability device that meets the requirements of various industries such as automotive, industrial, and aerospace. It's manufactured using a high-reliability process and is screened to ensure high reliability.
To troubleshoot issues with the LM5122QMH/NOPB, start by checking the input and output voltages, and ensuring that the device is properly powered. Check for any signs of overheating, and verify that the PCB layout is correct. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5122QMH/NOPB Overview

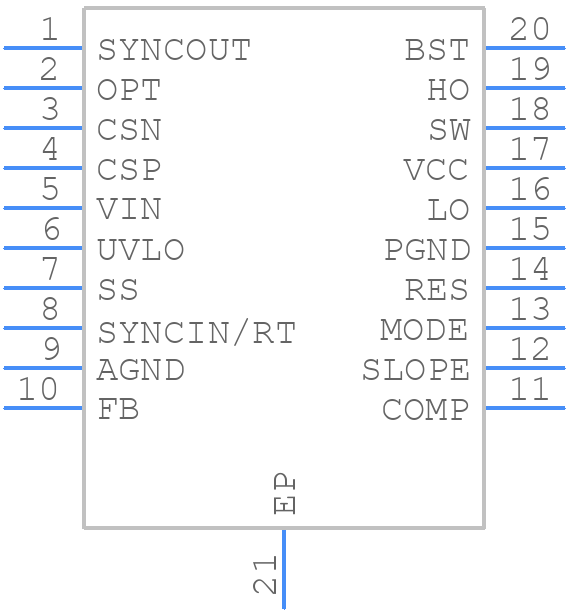

Use the download button to access the LM5122QMH/NOPB schematic symbol, PCB footprint, and 3D model.
