SEATED HGT-NOM, AVAILABLE OUTPUT VOLTAGE IS UP TO 100V
Analog IC - Other Type:
SWITCHING CONTROLLER
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
65 V
Input Voltage-Min:
3 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PDSO-G20
JESD-609 Code:
e3
Length:
6.5 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
20
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
20 A
Output Voltage-Max:
100 V
Output Voltage-Min:
3 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.1 mm
Surface Mount:
YES
Switcher Configuration:
BUCK-BOOST
Switching Frequency-Max:
1000 kHz
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
LM5122QMHE/NOPB Frequently Asked Questions (FAQs)
A good PCB layout for the LM5122QMHE/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the input and output capacitors should be selected based on the specific application requirements, and the device should be operated within its recommended operating conditions.
The LM5122QMHE/NOPB has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as a thermal pad or a heat sink, and to operate the device within its recommended operating conditions.
Yes, the LM5122QMHE/NOPB is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard, and Texas Instruments provides a PPAP (Production Part Approval Process) documentation package for automotive applications.
To troubleshoot issues with the LM5122QMHE/NOPB, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component values against the recommended values in the datasheet. Use an oscilloscope to measure the input and output waveforms, and consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5122QMHE/NOPB Overview

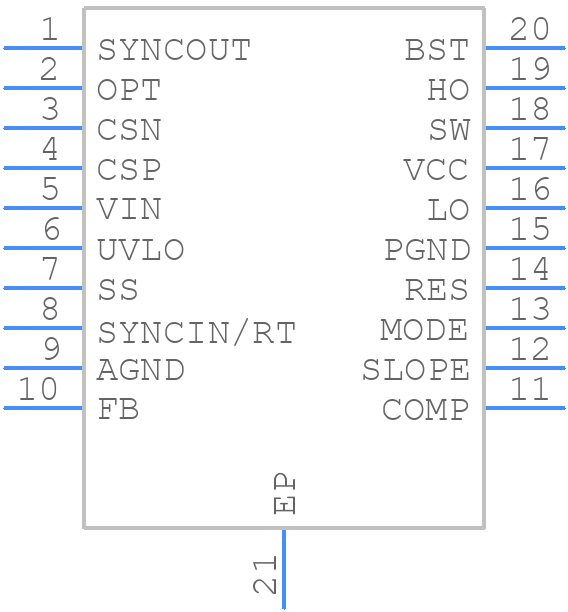

Use the download button to access the LM5122QMHE/NOPB schematic symbol, PCB footprint, and 3D model.
