Part Image

LM5141RGER - Texas Instruments

Description: Low Iq, Wide Input Range Synchronous Buck Controller

Download ECAD Model

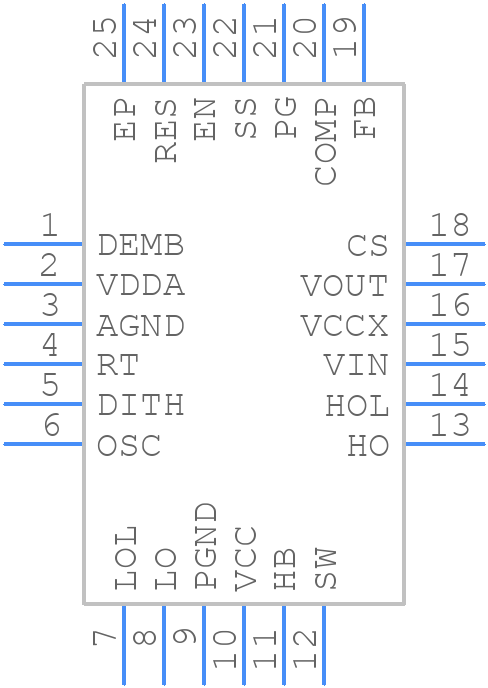

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

LM5141RGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024B
click to zoom

3D Models

LM5141RGER - Texas Instruments  - 3D model - Quad Flat No-Lead - RGE0024B
click to zoom

LM5141RGER Details

  • Manufacturer Part Number:

    LM5141RGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQCCN,

  • Reach Compliance Code:

    compliant

  • Date Of Intro:

    2017-03-19

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    0.87

  • Samacsys Modified On:

    2021-08-02 16:02:48

  • YTEOL:

    15

  • Additional Feature:

    ALSO AVAILABLE OUTPUT= 5V; ADJ OUTPUT VOLTAGE= 1.5V TO 15V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    65 V

  • Input Voltage-Min:

    3.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    30 A

  • Output Voltage-Max:

    15 V

  • Output Voltage-Min:

    1.5 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2600 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

Sponsored

LM5141RGER Overview

Use the download button to access the LM5141RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM514, or try a keyword search, such as Switching Regulator or Controllers

Parts related to LM5141RGER

Showing 0 results

LM5141RGER Alternates

Showing results

Image Part Number Model
Part Image LM5141RGET Texas Instruments

Low Iq, Wide Input Range Synchronous Buck Controller 24-VQFN -40 to 125

Part Image LM5141QRGETQ1 Texas Instruments

Automotive wide-input 2.2-MHz low-IQ synchronous buck controller 24-VQFN -40 to 150

Part Image LM5141QRGERQ1 Texas Instruments

Automotive wide-input 2.2-MHz low-IQ synchronous buck controller 24-VQFN -40 to 150
