Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing loop areas to reduce EMI.
Choose input capacitors with low ESR and high ripple current ratings. For output capacitors, select ones with low ESR, high capacitance, and a voltage rating that meets or exceeds the output voltage. Refer to the datasheet for specific recommendations.
The LM51521QRGRRQ1 is rated for operation up to 125°C ambient temperature, but it's essential to consider the thermal design and ensure the device stays within the recommended junction temperature (TJ) range of -40°C to 150°C.
Follow the datasheet's guidelines for component selection, PCB layout, and compensation. Ensure the output capacitor is properly sized, and the feedback network is correctly configured. You can also use TI's WEBENCH tool to simulate and optimize the design.
The LM51521QRGRRQ1 can operate from 4.5V to 18V input voltage, but optimal performance is typically achieved between 6V and 15V. Be sure to check the datasheet for specific recommendations and consider the input voltage range when selecting components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM51521QRGRRQ1 Overview

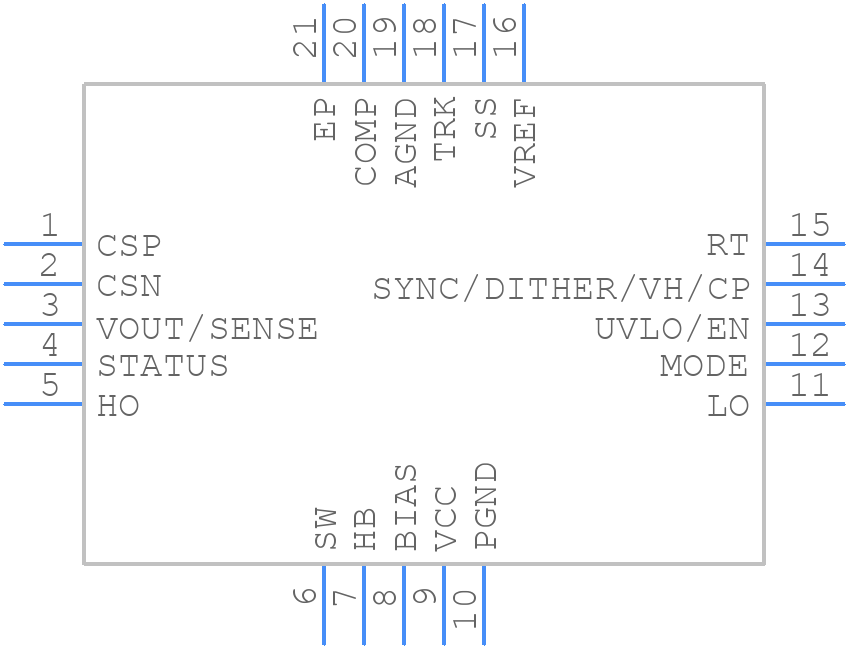

Use the download button to access the LM51521QRGRRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM515,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
