LM5152QRGRRQ1 - Texas Instruments

Description: Switching Voltage Regulators Automotive 2.2 MHz wide VIN low IQ synchronous boost controller

Download LM5152QRGRRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

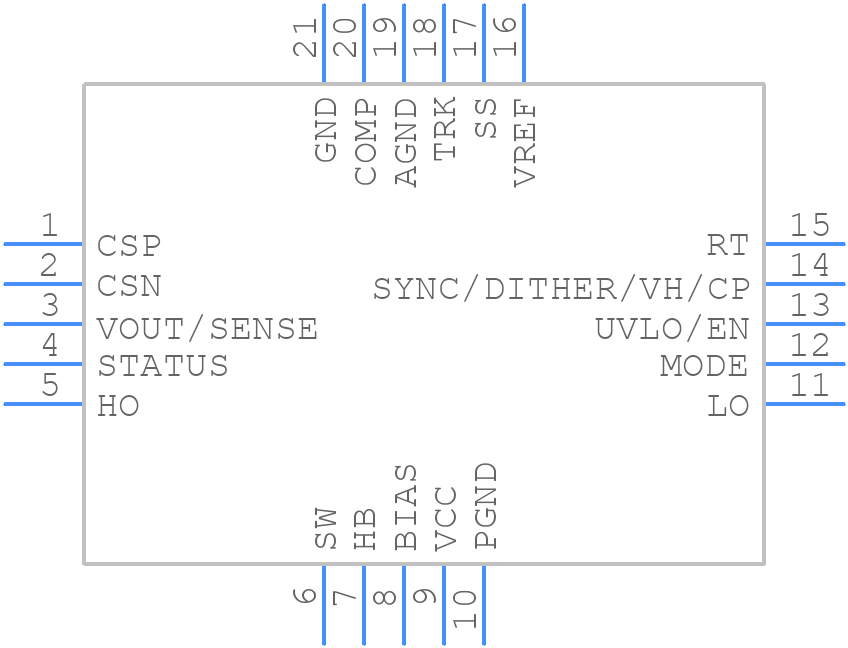

LM5152QRGRRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM5152QRGRRQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGR0020C
click to zoom
3D Models
LM5152QRGRRQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - RGR0020C
click to zoom

LM5152QRGRRQ1 Details

  • Manufacturer Part Number:

    LM5152QRGRRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    3.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    3.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    20 V

  • Output Voltage-Min:

    5 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.15SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2200 kHz

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3.5 mm

LM5152QRGRRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the input and output capacitors to the ground plane.
  • To ensure stability, follow the recommended component values and PCB layout, and make sure the input and output capacitors are properly selected and placed. Additionally, the datasheet provides a stability analysis section that can help you determine the stability of the converter.
  • The maximum ambient temperature range for the LM5152QRGRRQ1 is -40°C to 125°C, but the device can operate up to 150°C with derating. It's essential to consider the thermal design and heat dissipation in your application.
  • Yes, the LM5152QRGRRQ1 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is designed to meet the requirements of high-reliability systems.
  • Start by checking the input voltage, output voltage, and current. Verify that the component values and PCB layout match the recommended design. Use an oscilloscope to check for oscillations or ringing on the output. Consult the datasheet and application notes for troubleshooting guides and FAQs.
