Texas Instruments provides a recommended PCB layout in the LM51551QUDSSRQ1 evaluation module documentation, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure reliable start-up and shutdown, it is recommended to follow the power sequencing guidelines outlined in the datasheet, including the use of a soft-start circuit and a voltage supervisor to monitor the input voltage and ensure that the device is fully powered up before enabling the output.
The LM51551QUDSSRQ1's overcurrent protection feature is designed to protect the device from excessive output current, but it may not respond quickly enough to protect against very high current spikes or faults. Additional external protection circuitry may be necessary to ensure reliable operation in high-current applications.
While the LM51551QUDSSRQ1 is rated for operation up to 150°C, it is essential to consider the device's thermal derating, power dissipation, and reliability when operating in high-temperature environments. Consult the datasheet and application notes for guidance on thermal management and derating.
To troubleshoot output voltage regulation issues, check the input voltage, output load, and feedback network for proper configuration and operation. Verify that the device is operating within its specified input voltage range and that the output voltage is within the desired regulation range. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM51551QUDSSRQ1 Overview

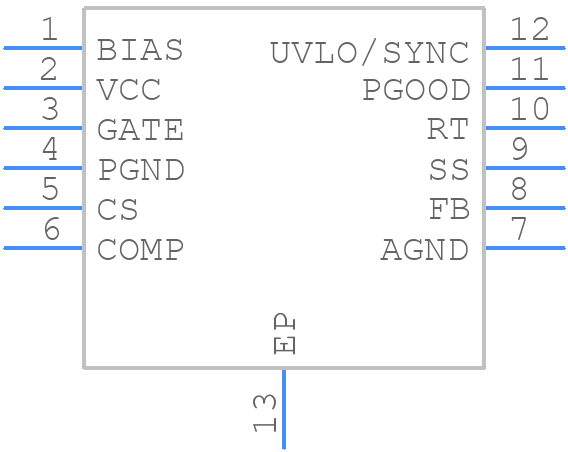

Use the download button to access the LM51551QUDSSRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM515,
or try a keyword search, such as Switching Regulator or Controllers
