Texas Instruments provides a recommended PCB layout in the LM5168PDDAR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise and EMI.
The selection of the inductor depends on the specific application requirements, such as the output voltage, current, and frequency. Texas Instruments provides a list of recommended inductors in the datasheet, and also offers an inductor selection tool on their website to help engineers choose the right inductor for their design.
The LM5168PDDAR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal management design. Engineers should ensure that the device is operated within the recommended temperature range to ensure reliable operation and to prevent overheating.
The LM5168PDDAR has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCP pin and the VIN pin. The value of the resistor determines the overcurrent threshold, and engineers can adjust it according to their specific application requirements.
Yes, the LM5168PDDAR is qualified for automotive and high-reliability applications, and meets the requirements of the AEC-Q100 standard. However, engineers should ensure that their design meets the specific requirements of their application, including temperature range, vibration, and other environmental factors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5168PDDAR Overview

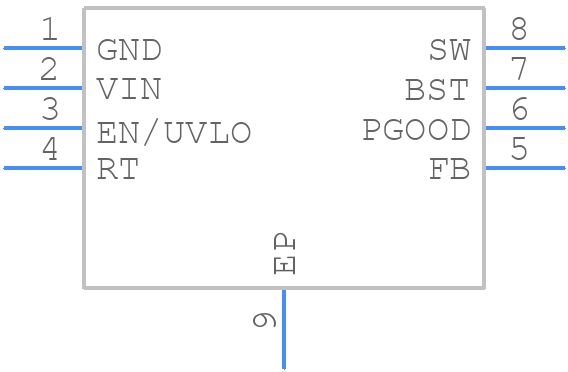

Use the download button to access the LM5168PDDAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM516,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
