LM5171QPHPRQ1 - Texas Instruments

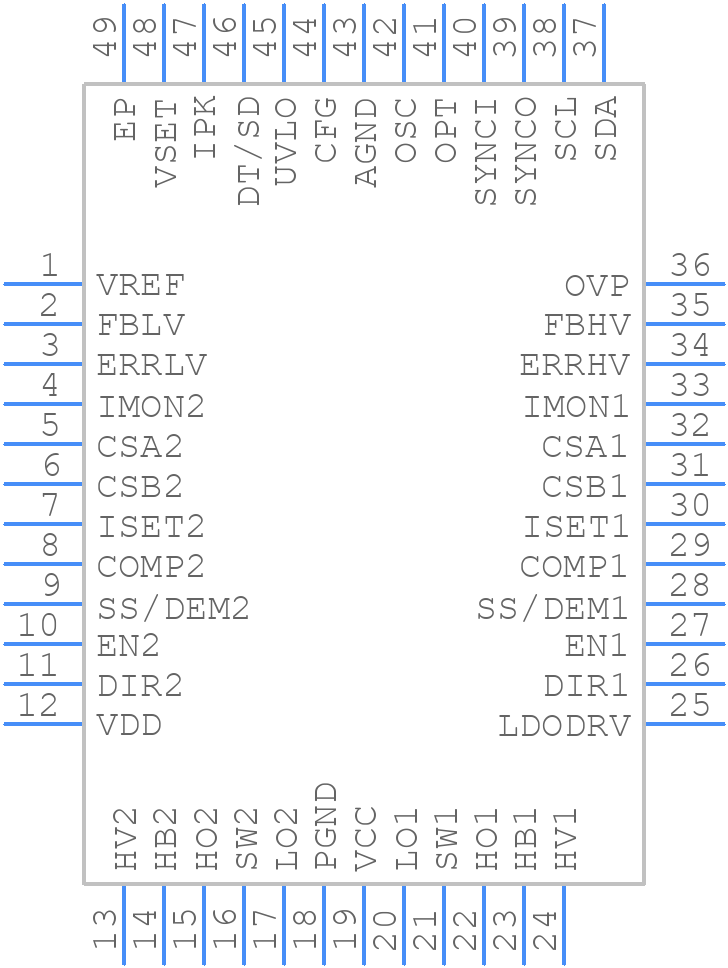

LM5171QPHPRQ1 Details

• Manufacturer Part Number:

  LM5171QPHPRQ1

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  HTQFP-48

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Analog IC - Other Type:

  SWITCHING CONTROLLER

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  75 V

• Input Voltage-Min:

  1 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  S-PQFP-G48

• Length:

  7 mm

• Number of Functions:

  1

• Number of Terminals:

  48

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  5 A

• Output Voltage-Max:

  80 V

• Output Voltage-Min:

  3 V

• Output Voltage-Nom:

  48 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTQFP

• Package Equivalence Code:

  QFP48,.3SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, THIN PROFILE

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.2 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK-BOOST

• Switching Frequency-Max:

  1100 kHz

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  7 mm
