A good PCB layout for the LM5175RHFT involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. TI provides a recommended PCB layout in the datasheet and application notes.
When selecting an inductor for the LM5175RHFT, consider the inductor's saturation current, DC resistance, and core material. The inductor should be able to handle the peak current and have a low DC resistance to minimize losses. TI provides a list of recommended inductors in the datasheet.
The LM5175RHFT has an operating temperature range of -40°C to 125°C. High temperatures can affect the device's performance, reducing its efficiency and increasing its power losses. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
The LM5175RHFT has a built-in overcurrent protection feature. To implement it, connect a resistor from the OCP pin to GND, and set the threshold voltage according to the datasheet. The recommended settings depend on the application's specific requirements and the desired overcurrent threshold.
The LM5175RHFT and LM5165 are both high-voltage, high-current buck converters, but they have different feature sets and specifications. The LM5175RHFT has a higher input voltage range and a more advanced feature set, including a built-in LDO and overcurrent protection. The LM5165 is a more basic device with a lower input voltage range.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LM5175RHFT Overview

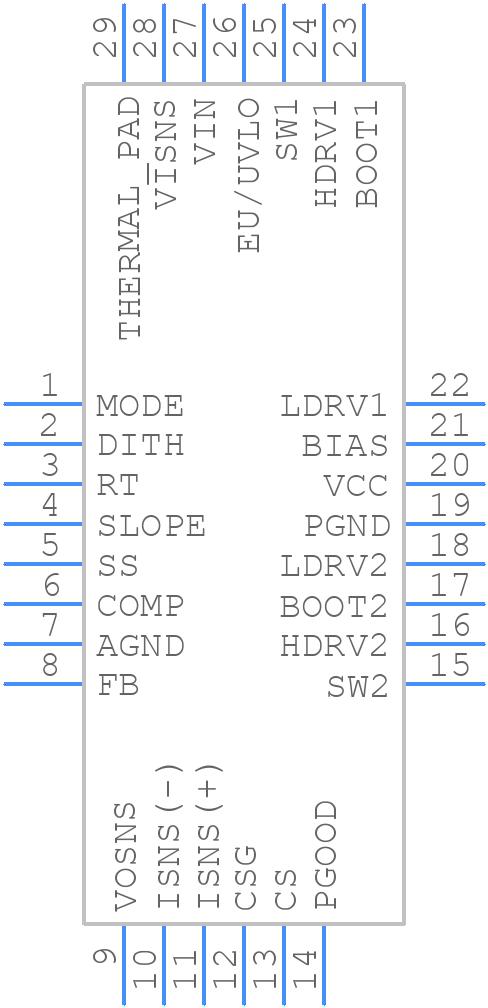

Use the download button to access the LM5175RHFT schematic symbol, PCB footprint, and 3D model.
