Texas Instruments provides a recommended PCB layout in the LM51772RHAR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of the right inductor depends on the specific application requirements, such as the desired output voltage, current, and frequency. Texas Instruments provides an inductor selection guide in the LM51772RHAR datasheet, which includes formulas and tables to help engineers choose the optimal inductor for their design.
The LM51772RHAR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal management design. Engineers should ensure that the device is operated within the recommended temperature range to ensure reliable operation and to prevent overheating.
The LM51772RHAR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The datasheet provides a detailed description of the overcurrent protection circuit and the recommended component values for different applications.
The recommended input capacitor type is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric capacitor. The input capacitor value depends on the specific application requirements, but a typical value is 10uF to 22uF. The datasheet provides more information on input capacitor selection and placement.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM51772RHAR Overview

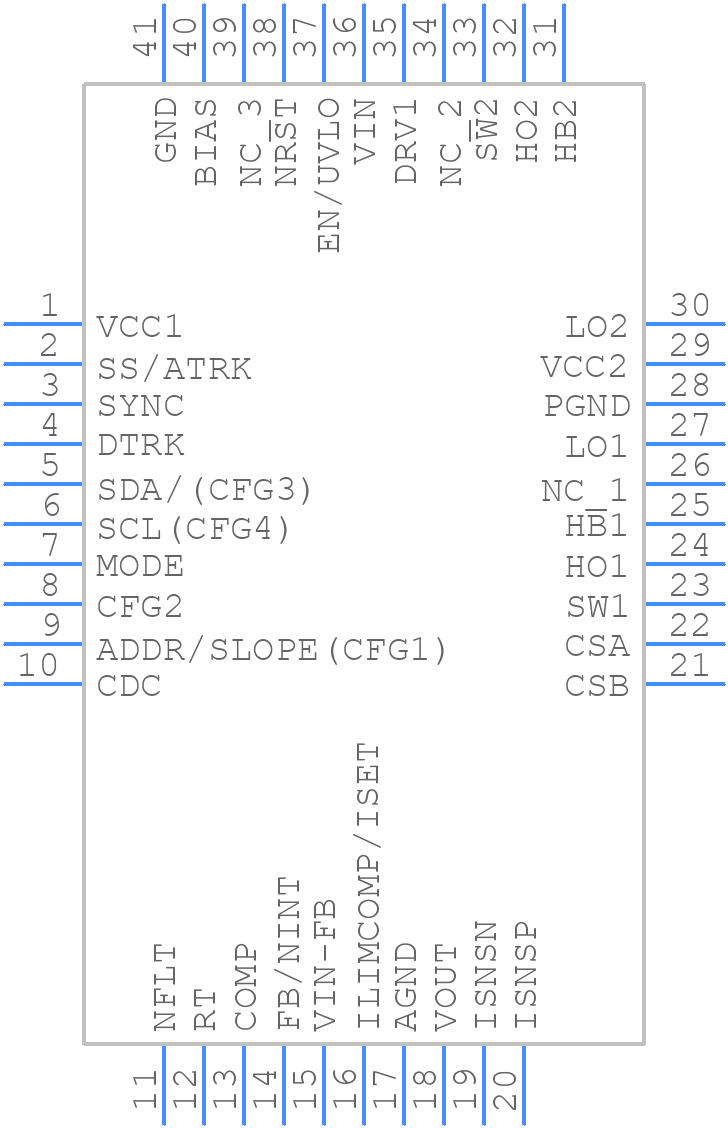

Use the download button to access the LM51772RHAR schematic symbol, PCB footprint, and 3D model.
