LM5180NGUR - Texas Instruments

Description: 65-VIN PSR flyback converter with 100-V, 1.5-A integrated power MOSFET

Download LM5180NGUR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

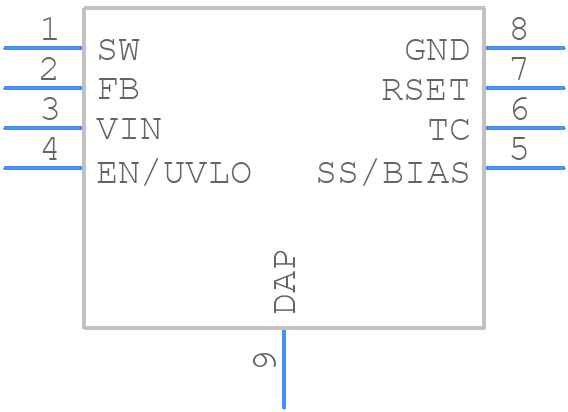

LM5180NGUR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM5180NGUR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NGU0008B
click to zoom
3D Models
LM5180NGUR - Texas Instruments - 3D model - Small Outline No-lead - NGU0008B
click to zoom

LM5180NGUR Details

  • Manufacturer Part Number:

    LM5180NGUR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    65 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    100 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    350 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LM5180NGUR Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM5180NGUR involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. TI provides a recommended PCB layout in the datasheet and application notes.
  • Choose input capacitors with low ESR and high ripple current rating. For output capacitors, choose ones with low ESR and high capacitance. The datasheet provides guidelines for capacitor selection, and TI's capacitor selection tool can also be used.
  • The LM5180NGUR is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range depends on the specific application and the thermal design of the system.
  • To ensure stability, follow the datasheet's guidelines for component selection and PCB layout. Additionally, ensure that the input and output capacitors are properly sized, and the feedback network is correctly configured.
  • Yes, the LM5180NGUR is qualified for automotive and high-reliability applications. However, additional testing and validation may be required to meet specific industry standards.
