ALSO OPERATES IN PFM CONTROL TECHNIQUE, ALSO OPERATES IN ADJUSTABLE MODE FROM 3.3 TO 6V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
42 V
Input Voltage-Min:
3.5 V
Input Voltage-Nom:
13.5 V
JESD-30 Code:
S-PDSO-N10
JESD-609 Code:
e4
Length:
3 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
10
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.65 A
Output Voltage-Max:
9.9 V
Output Voltage-Min:
3.3 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
0.8 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2400 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
LM53600MQDSXTQ1 Frequently Asked Questions (FAQs)
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. A 4-layer PCB with a solid ground plane and a thermal relief pattern can also help to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, and to ensure that the device is operated within its recommended operating temperature range. Additionally, consider using thermal interface materials and heat sinks to improve heat dissipation.
To ensure EMI and EMC compliance, it's essential to follow proper PCB layout and design guidelines, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering components as needed. Additionally, consider using EMI-absorbing materials and following proper cable shielding and termination techniques.
To troubleshoot common issues such as output voltage deviations or oscillations, start by verifying the input voltage, output voltage, and feedback connections. Check for proper component values, PCB layout, and thermal design. Use oscilloscopes and other diagnostic tools to identify and isolate the issue, and consult the datasheet and application notes for guidance.
The recommended component values for optimal performance can be found in the datasheet and application notes. However, it's essential to consider factors such as input voltage, output voltage, and desired output current when selecting component values. Additionally, consider using simulation tools and SPICE models to optimize component values for specific applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM53600MQDSXTQ1 Overview

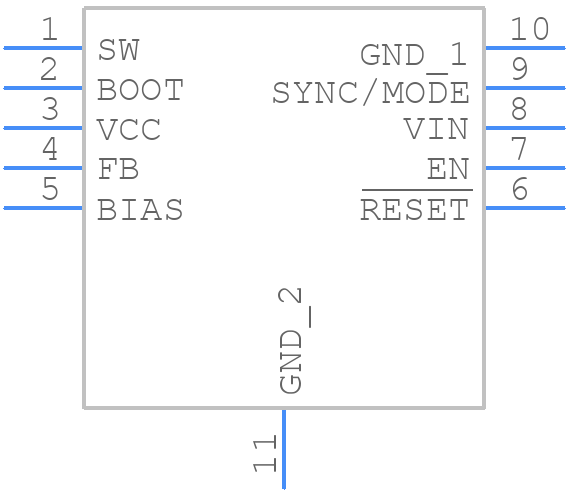

Use the download button to access the LM53600MQDSXTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM536,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
