Description:Switching Voltage Regulators 3.5V to 36V, 650mA Synchronous 2.1MHz Step-Down Converter for Automotive Applications 10-WSON -40 to 150; NOT VERIFIED -> Excludes vias, needs adjustment to thermal pad
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. The datasheet provides some guidelines, but a more detailed application note from TI provides additional recommendations.
TI provides a range of tools and resources, including the WEBENCH Power Designer tool, to help engineers configure the LM53600NQDSXRQ1 for their specific application. Additionally, TI's application notes and technical documentation provide guidance on configuration and optimization.
To minimize EMI and noise, it's essential to follow proper PCB layout and design practices, such as separating analog and digital grounds, using shielding, and minimizing loop areas. TI's application notes and documentation provide additional guidance on EMI and noise reduction techniques.
TI provides a range of troubleshooting resources, including application notes and FAQs, to help engineers identify and resolve common issues. Additionally, TI's support team is available to provide assistance with troubleshooting and debugging.
Operating the LM53600NQDSXRQ1 at high temperatures can affect its performance and reliability. TI's datasheet and application notes provide guidance on thermal considerations, and engineers should ensure that their design takes into account the device's thermal characteristics and limitations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM53600NQDSXRQ1 Overview

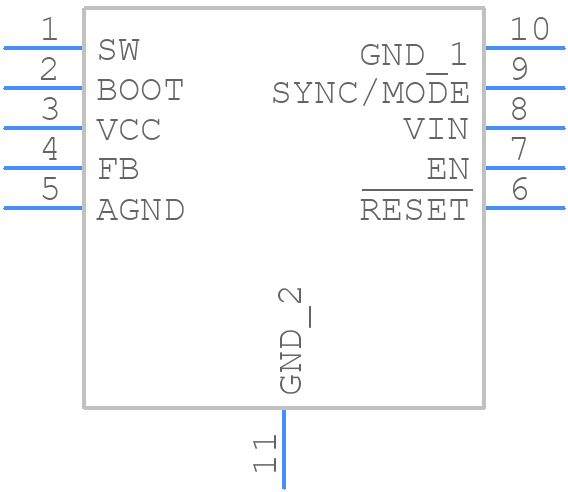

Use the download button to access the LM53600NQDSXRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM536,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
