ALSO OPERATES IN PFM CONTROL TECHNIQUE, ALSO OPERATES IN ADJUSTABLE MODE FROM 3.3 TO 6V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
42 V
Input Voltage-Min:
3.5 V
Input Voltage-Nom:
13.5 V
JESD-30 Code:
S-PDSO-N10
JESD-609 Code:
e4
Length:
3 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
10
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
1 A
Output Voltage-Max:
6 V
Output Voltage-Min:
3.2 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
0.8 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2400 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
LM53601AQDSXRQ1 Frequently Asked Questions (FAQs)
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or heat sink, using thermal vias to dissipate heat, and keeping the device away from other heat sources.
To ensure reliable operation in high-temperature environments, ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions and derating guidelines in the datasheet.
Exceeding the maximum junction temperature can lead to reduced device lifespan, decreased performance, and potentially even device failure. It's essential to ensure the device operates within the recommended temperature range.
To troubleshoot issues with output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure the device is properly configured, and the output voltage is within the specified range.
To minimize EMI and EMC issues, use proper PCB layout techniques, decoupling capacitors, and shielding. Follow the recommended layout guidelines and use EMI filters if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM53601AQDSXRQ1 Overview

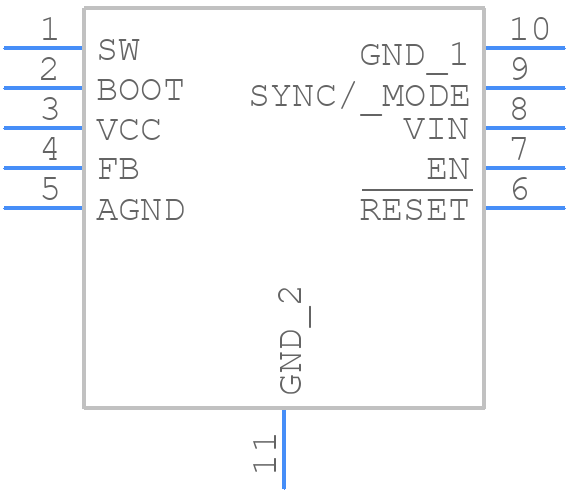

Use the download button to access the LM53601AQDSXRQ1 schematic symbol, PCB footprint, and 3D model.
