A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. A 4-layer PCB with a solid ground plane and a thermal relief pattern can also help to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, and to ensure that the device is operated within its recommended operating temperature range. Additionally, consider using thermal interface materials and heat sinks to improve heat dissipation.
To ensure EMI and EMC compliance, it's essential to follow proper PCB layout and design guidelines, use shielding and filtering components, and ensure that the device is operated within its recommended frequency range. Additionally, consider using EMI filters and shielding components to reduce electromagnetic interference.
To troubleshoot common issues such as output voltage deviations or oscillations, start by checking the input voltage, output load, and PCB layout for any anomalies. Verify that the device is operated within its recommended operating conditions, and check for any signs of overheating or electrical overstress. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue.
The recommended test and measurement procedures for the LM53601NQDSXTQ1 involve using a combination of oscilloscopes, multimeters, and other diagnostic tools to measure key parameters such as output voltage, current, and frequency. Follow the recommended test procedures outlined in the datasheet and application notes to ensure accurate and reliable measurements.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM53601NQDSXTQ1 Overview

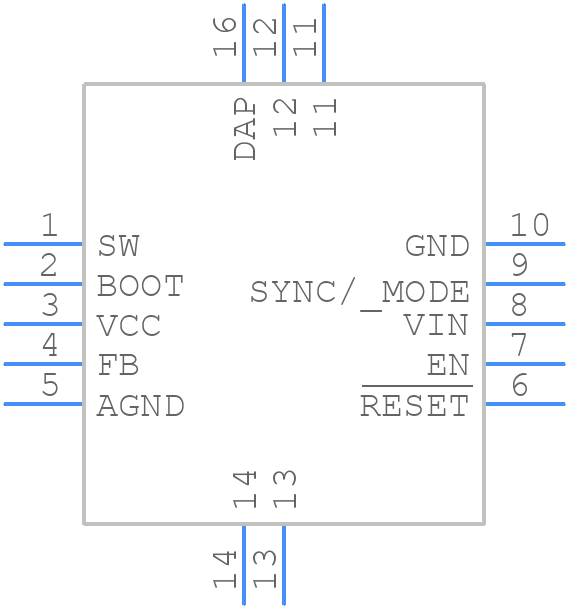

Use the download button to access the LM53601NQDSXTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM536,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
