ALSO OPTS IN PFM CONTROL TECH, ALSO AVLB VOUT = 5V, ALSO OPTS IN ADJ MODE FROM 3.3 TO 6V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
42 V
Input Voltage-Min:
3.5 V
Input Voltage-Nom:
13.5 V
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
5 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
16
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2 A
Output Voltage-Max:
9.9 V
Output Voltage-Min:
3.2 V
Output Voltage-Nom:
3.3 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSOP
Package Equivalence Code:
TSSOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Screening Level:
AEC-Q100
Seated Height-Max:
1 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2350 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
LM536025QPWPRQ1 Frequently Asked Questions (FAQs)
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. The datasheet provides some guidelines, but a more detailed application note from TI provides additional guidance.
To ensure proper power-up and configuration, follow the recommended power-up sequence, ensure the input voltage is within the specified range, and configure the device according to the datasheet and application notes. Additionally, use the EN pin to control the device's power state.
Operating the device outside the recommended operating conditions can lead to reduced performance, increased power consumption, and potentially even device damage. It's essential to operate the device within the specified temperature range, input voltage, and output current to ensure reliable operation.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current consumption. Check for any signs of overheating, and ensure the device is properly configured and powered up. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
To minimize EMI and ensure EMC compliance, follow proper PCB layout and design guidelines, use shielding and filtering as needed, and ensure the device is properly decoupled. Consult the datasheet and application notes for specific guidance on EMI and EMC considerations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM536025QPWPRQ1 Overview

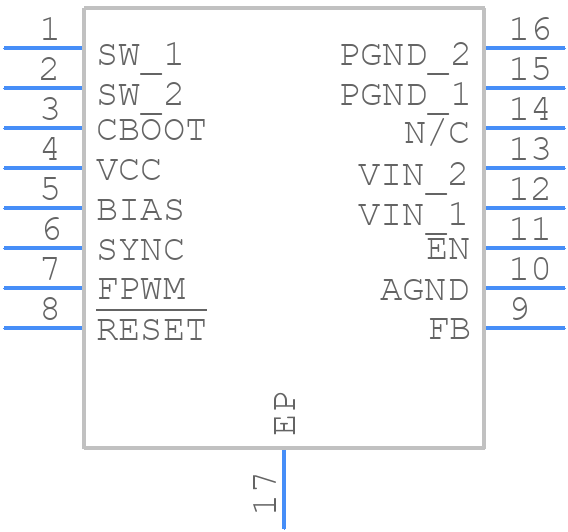

Use the download button to access the LM536025QPWPRQ1 schematic symbol, PCB footprint, and 3D model.
