ALSO OPTS IN PFM CONTROL TECH, ALSO AVLB VOUT = 5V, ALSO OPTS IN ADJ MODE FROM 3.3 TO 6V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
42 V
Input Voltage-Min:
3.5 V
Input Voltage-Nom:
13.5 V
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
5 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
16
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
3 A
Output Voltage-Max:
9.9 V
Output Voltage-Min:
3.2 V
Output Voltage-Nom:
3.3 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSOP
Package Equivalence Code:
TSSOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Screening Level:
AEC-Q100
Seated Height-Max:
1 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2350 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
LM536033QPWPTQ1 Frequently Asked Questions (FAQs)
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using a 2-3 layer board with a solid ground plane, and minimizing the distance between the device and the thermal pad or heat sink.
To ensure the device operates within the recommended operating conditions, monitor the input voltage, output voltage, and output current to ensure they are within the specified ranges. Also, ensure the device is operated within the recommended temperature range.
Exceeding the maximum junction temperature can lead to reduced device lifespan, decreased performance, and potentially even device failure. It is essential to ensure the device operates within the recommended temperature range to prevent overheating.
To troubleshoot issues with the device, start by verifying the input voltage, output voltage, and output current are within the specified ranges. Check the PCB layout for any thermal or electrical issues, and ensure the device is properly soldered and connected. If issues persist, consult the datasheet or contact Texas Instruments support for further assistance.
Not following the recommended layout and thermal considerations can lead to reduced device performance, increased thermal resistance, and potentially even device failure. It is essential to follow the recommended layout and thermal considerations to ensure optimal device performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM536033QPWPTQ1 Overview

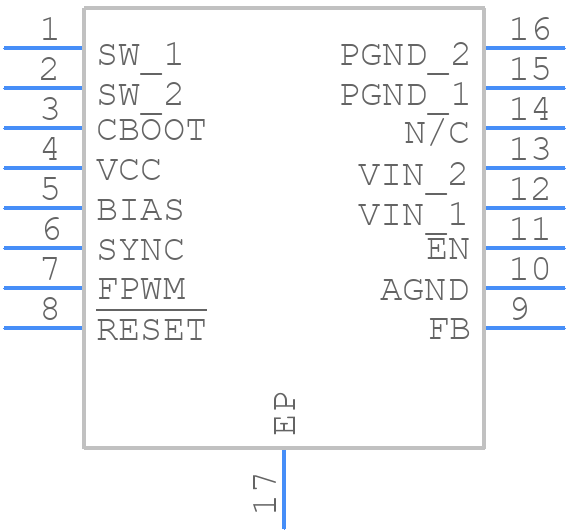

Use the download button to access the LM536033QPWPTQ1 schematic symbol, PCB footprint, and 3D model.
