ALSO OPTS IN PFM CONTROL TECH, ALSO AVLB VOUT = 5V, ALSO OPTS IN ADJ MODE FROM 3.3 TO 6V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
42 V
Input Voltage-Min:
3.5 V
Input Voltage-Nom:
13.5 V
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
5 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
16
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
3 A
Output Voltage-Max:
9.9 V
Output Voltage-Min:
3.2 V
Output Voltage-Nom:
3.3 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSOP
Package Equivalence Code:
TSSOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Screening Level:
AEC-Q100
Seated Height-Max:
1 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2350 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
LM536035QPWPRQ1 Frequently Asked Questions (FAQs)
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. The datasheet provides some guidelines, but a more detailed application note from TI provides additional guidance.
To ensure proper power-up and configuration, follow the recommended power-up sequence outlined in the datasheet, and make sure to configure the device according to the recommended settings for the specific application. Additionally, ensure that the input voltage and current are within the recommended operating range.
Operating the device outside of the recommended operating conditions can lead to reduced performance, decreased reliability, and potentially even damage to the device. It's essential to ensure that the device operates within the recommended voltage, current, and temperature ranges to ensure optimal performance and longevity.
To troubleshoot issues with the device, start by reviewing the datasheet and application notes to ensure that the device is properly configured and operating within the recommended conditions. Use debugging tools and techniques, such as oscilloscopes and logic analyzers, to identify the root cause of the issue. TI also provides technical support and resources to help troubleshoot and resolve issues.
When using the device in a high-reliability or safety-critical application, it's essential to follow the recommended design and testing guidelines to ensure the device meets the required safety and reliability standards. This may involve additional testing, validation, and certification, as well as adherence to industry-specific standards and regulations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM536035QPWPRQ1 Overview

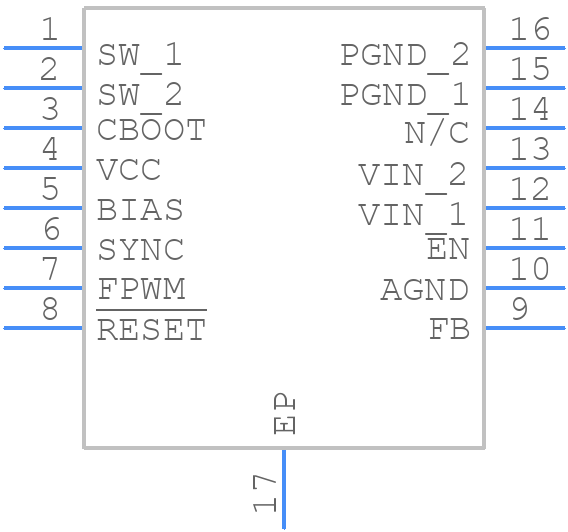

Use the download button to access the LM536035QPWPRQ1 schematic symbol, PCB footprint, and 3D model.
