Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the input and output capacitors to the ground plane.
The selection of input and output capacitors depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The datasheet provides guidelines for capacitor selection, but it's also recommended to consult the capacitor manufacturer's datasheet and application notes.
The LM53625QRNLTQ1 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range may be limited by the specific application and the thermal design of the system. It's recommended to consult the datasheet and perform thermal analysis to ensure the device operates within its specified temperature range.
The LM53625QRNLTQ1 has a specific power-up and power-down sequence that must be followed to ensure proper operation. The datasheet provides guidelines for power-up and power-down sequencing, and it's recommended to follow these guidelines to prevent damage to the device or other components in the system.
The recommended input voltage range for the LM53625QRNLTQ1 is 2.7V to 5.5V, but the device can operate from 2.3V to 5.5V. However, operating the device outside of the recommended input voltage range may affect its performance and efficiency.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LM536255QRNLTQ1 Overview

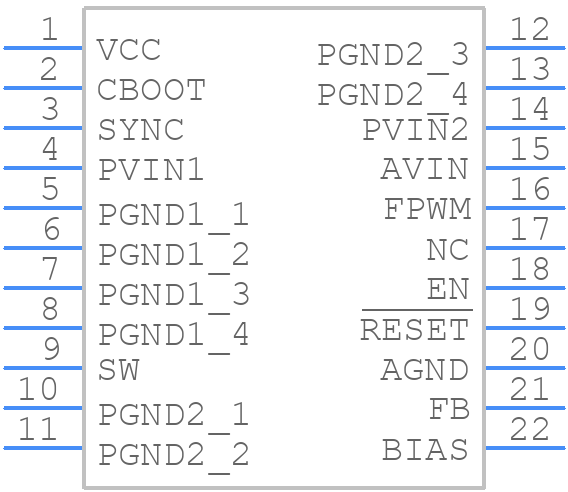

Use the download button to access the LM536255QRNLTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM536,
or try a keyword search, such as Switching Regulator or Controllers
