Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good thermal design practices, such as using a solid ground plane, placing thermal vias under the device, and keeping the thermal path short and direct.
Verify that the input voltage, output voltage, and output current are within the specified ranges. Also, ensure the device is operated within the recommended junction temperature (TJ) range of -40°C to 150°C.
The datasheet doesn't specify a maximum input voltage ripple, but as a general rule, it's recommended to keep the input voltage ripple below 10% of the nominal input voltage to ensure stable operation.
Yes, the LM53635QRNLTQ1 is AEC-Q100 qualified, making it suitable for automotive and high-reliability applications. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific application requirements.
Use the equations provided in the datasheet to calculate the power dissipation (PD) and junction temperature (TJ). Consider factors such as input voltage, output voltage, output current, and ambient temperature when making these calculations.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM536355QRNLTQ1 Overview

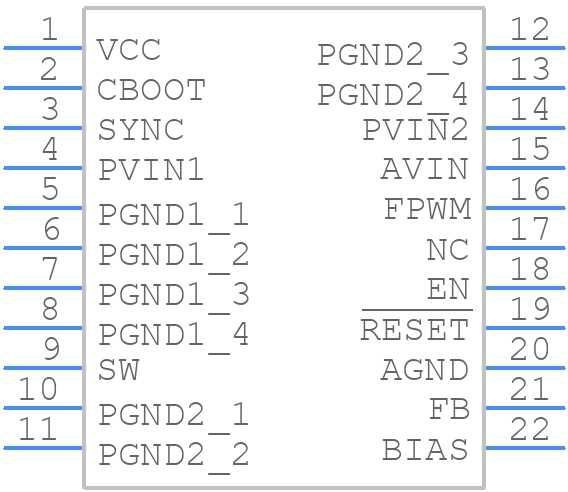

Use the download button to access the LM536355QRNLTQ1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LM536,
or try a keyword search, such as Switching Regulator or Controllers
