Texas Instruments provides a recommended PCB layout in the LM53635 datasheet, which includes guidelines for thermal vias, copper pours, and component placement. Additionally, the TI Power Stage Designer tool can be used to generate a custom PCB layout for the LM53635.
The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and switching frequency. Texas Instruments provides a list of recommended inductors in the datasheet, and the TI Power Stage Designer tool can also be used to select an inductor based on the design requirements.
The maximum junction temperature for the LM53635 is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
The LM53635 has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The datasheet provides more information on how to implement overcurrent protection, including the calculation of the OCP threshold voltage.
The LM53635 is rated for operation up to 125°C, but it's recommended to derate the device's performance at high temperatures. Texas Instruments provides a thermal derating curve in the datasheet, which can be used to determine the maximum power dissipation at a given temperature.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LM53635LQRNLRQ1 Overview

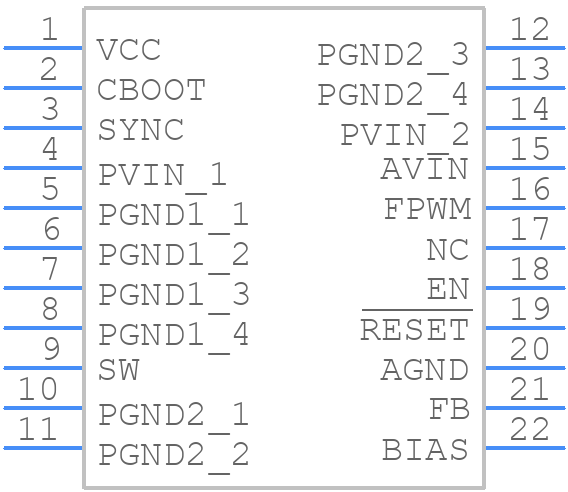

Use the download button to access the LM53635LQRNLRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM536,
or try a keyword search, such as Switching Regulator or Controllers
