The maximum input voltage that can be applied to the LM53635NQRNLTQ1 is 42V, as specified in the datasheet. However, it's recommended to operate the device within the recommended operating conditions to ensure reliable operation.
To ensure the stability of the output voltage, it's essential to follow the recommended layout guidelines, use a suitable output capacitor, and ensure that the input voltage is within the recommended operating range. Additionally, the datasheet provides guidance on selecting the correct output capacitor and resistor values to ensure stability.
The maximum output current that the LM53635NQRNLTQ1 can deliver is 3.5A, as specified in the datasheet. However, the actual output current may be limited by the input voltage, output voltage, and thermal considerations.
To handle thermal considerations, it's essential to ensure good thermal conductivity between the device and the PCB, use a suitable heat sink if necessary, and follow the recommended thermal design guidelines. The datasheet provides guidance on thermal design and calculation of the junction temperature.
The EN (enable) pin is used to enable or disable the device. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing or to turn the device on and off as needed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM53635NQRNLTQ1 Overview

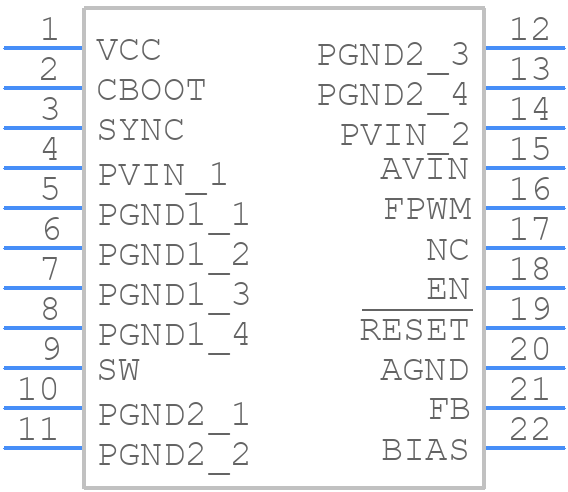

Use the download button to access the LM53635NQRNLTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM536,
or try a keyword search, such as Switching Regulator or Controllers
