LM556CN - Texas Instruments

Description: TEXAS INSTRUMENTS - LM556CN. - IC, TIMER DUAL, DIP14, 556

Download LM556CN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

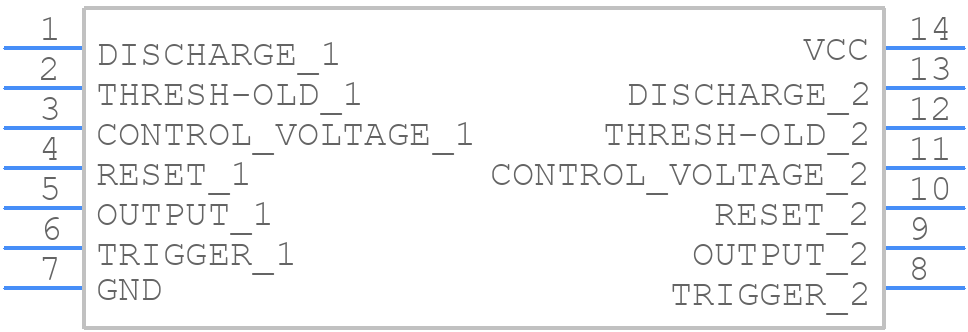

Symbol
LM556CN - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM556CN - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - SN74LS74ANE4
click to zoom
3D Models
LM556CN - Texas Instruments - 3D model - Dual-In-Line Packages - SN74LS74ANE4
click to zoom

LM556CN Details

  • Manufacturer Part Number:

    LM556CN

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    PULSE; RECTANGULAR

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e0

  • Length:

    19.18 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

LM556CN Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the LM556CN is approximately 500 kHz, although this can vary depending on the specific application and external component values.
  • No, the LM556CN is a timer IC and not a voltage regulator. It is not designed to regulate voltage and should not be used as a substitute for a dedicated voltage regulator IC.
  • To ensure stable operation of the LM556CN in noisy environments, use decoupling capacitors on the power supply lines, keep the layout compact, and use shielding or guard rings to minimize electromagnetic interference (EMI).
  • The minimum supply voltage for the LM556CN is 4.5V, and the maximum supply voltage is 16V. Operating the IC outside of this range may result in unstable or incorrect operation.
  • Yes, the LM556CN can be used as a one-shot timer by connecting the trigger input to the threshold input and using an external capacitor and resistor to set the timing interval.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM556CN Overview

Use the download button to access the LM556CN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM556, or try a keyword search, such as Analog Waveform Generation Functions
