ALSO OPERATES IN ADJUSTABLE MODE FROM 1.3V TO 32.4
Analog IC - Other Type:
DUAL SWITCHING CONTROLLER
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
36 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
5 V
JESD-30 Code:
R-PDSO-G28
JESD-609 Code:
e0
Length:
9.7 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
28
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
20 A
Output Voltage-Max:
34 V
Output Voltage-Min:
1.236 V
Output Voltage-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
235
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
PUSH-PULL
Switching Frequency-Max:
250 kHz
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
TIN LEAD
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
20
Width:
4.4 mm
LM5642MTC Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ringing.
Monitor the device's junction temperature, input voltage, and output current to ensure they are within the recommended operating conditions specified in the datasheet. Also, ensure that the device is properly heatsinked and that the PCB is designed to dissipate heat efficiently.
The datasheet does not specify a maximum allowable ripple voltage, but as a general rule, it's recommended to keep the input ripple voltage below 10% of the nominal input voltage to ensure stable operation and minimize output voltage ripple.
Yes, the LM5642MTC is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is also suitable for use in high-reliability industrial and medical applications.
Use a systematic approach to troubleshoot issues, starting with checking the input voltage, output voltage, and output current. Verify that the device is properly configured and that the PCB layout is correct. Use oscilloscopes and thermal imaging cameras to identify any issues with the device or PCB. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5642MTC Overview

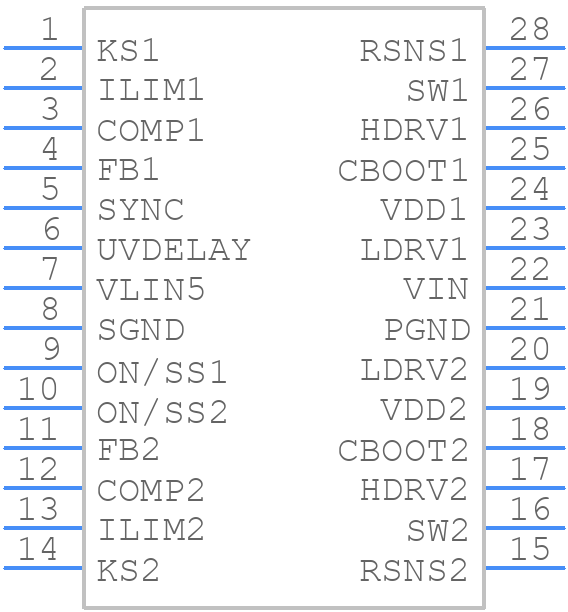

Use the download button to access the LM5642MTC schematic symbol, PCB footprint, and 3D model.
