- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LM566CN
- Part Number LM566CN
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - Molded Dual-In-Line Package (N)
- Released Date Jan 10, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM566CN Details
-
Manufacturer Part Number:
LM566CN
-
Rohs Code:
No
-
Part Life Cycle Code:
Obsolete
-
Package Description:
DIP, DIP8,.3
-
Reach Compliance Code:
Unknown
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Analog IC - Other Type:
SQUARE; TRIANGULAR
-
JESD-30 Code:
R-PDIP-T8
LM566CN Frequently Asked Questions (FAQs)
-
A 0.1uF ceramic capacitor and a 10uF electrolytic capacitor in parallel, placed close to the VCC pin, are recommended for power supply decoupling.
-
To ensure the LM566CN oscillates at the desired frequency, the timing capacitor (CT) and resistor (RT) values must be carefully selected. Use the formula f = 1.2 / (RT * CT) to calculate the frequency, and adjust the values accordingly.
-
The maximum frequency deviation of the LM566CN is approximately ±20% over the entire voltage control range (0 to 10V).
-
Yes, the LM566CN can be used as a voltage-controlled oscillator in a PLL application. However, the PLL loop filter design and the LM566CN's voltage control input must be carefully considered to ensure stable operation.
-
To minimize jitter and noise in the LM566CN output, use a high-quality timing capacitor (CT) with low equivalent series resistance (ESR), and ensure the power supply is well-regulated and decoupled.
Trust Checks
Community Provided
System Verified
Community Approved
LM566CN Overview

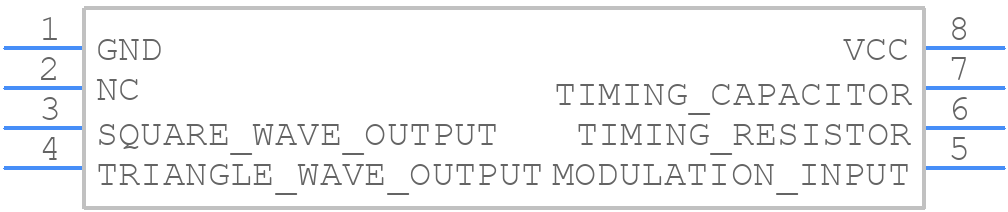

Use the download button to access the LM566CN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM566,
or try a keyword search, such as Analog Waveform Generation Functions
